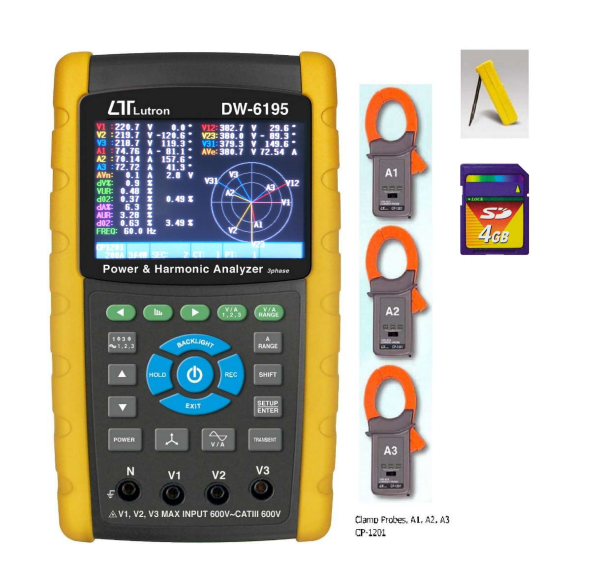

3 PHASE POWER ANALYZER with harmonic measurement

Model : DW-6195 三相位功率分析儀

Achieve Precision with a Smart and Versatile Power Analyzer

The DW-6195 3-Phase Power Analyzer offers accurate and reliable measurements for multi-phase power systems, making it an essential tool for various applications in electrical testing, industrial environments, and maintenance.



Exceptional Features of the DW-6195:



1. Comprehensive Power Analysis: Capable of analyzing 3-phase multi-power systems, including 1P/2W, 1P/3W, 3P/3W, and 3P/4W configurations.

2. True RMS Measurements: Provides true RMS values for voltage and current measurements, ensuring high accuracy.

3. Harmonic Measurement: Features harmonic measurement capabilities, displaying harmonics up to the 50th order.

4. Wide Measurement Range: Voltage measurement range from 10 to 600 ACV and current measurement range from 20 A to 3000 ACA with various probes.

5. Real-Time Data Logging: Features a built-in clock and calendar for real-time data recording with an SD memory card.



Technical Specifications:



– Voltage Measurement:

– Range: 10.0V to 600.0V

– Resolution: 0.1V

– Accuracy: ± (0.5% + 0.5V)

– Input Impedance: 10 Mega ohms

– Current Measurement:

– Range: 20 A, 200 A, 1200 A, 3000 A (with appropriate probes)

– Resolution: 0.001A to 1A

– Accuracy: Varies with range and probe (e.g., ± (1% + 0.1A) for 20A range)

– Power Factor:

– Range: 0.00 to 1.00

– Resolution: 0.01

– Accuracy: ± 0.04

– Phase Angle (Φ):

– Range: -180° to 180°

– Resolution: 0.1°

– Accuracy: ± 1°

– Frequency:

– Range: 45 to 65 Hz

– Resolution: 0.1 Hz

– Accuracy: ± 0.1 Hz

– Power Measurements:

– True Power (KW, MW, GW)

– Apparent Power (KVA, MVA, GVA)

– Reactive Power (KVAR, MVAR, GVAR)

– Watt-Hour (WH, SH, QH, PFH)

– Harmonic Measurement:

– Harmonic Display: Up to the 50th order

– Total Harmonic Distortion (THD) Analysis

– Data Logging and Output:

– Real-time data logger with SD memory card

– Sampling time: 2 to 7200 seconds

– RS232 and USB interfaces for data transfer
