LIGHT METER

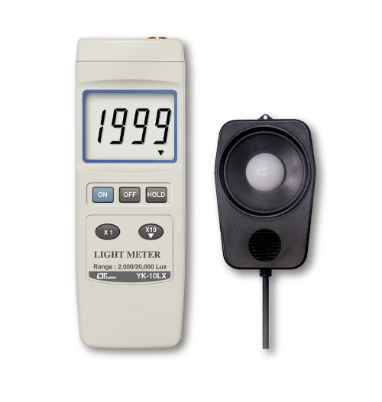

YK-10LX
Product Overview
Achieve Precision and Versatility with a Professional Light Meter
The YK-10LX Light Meter provides accurate and reliable measurements of light intensity, making it an essential tool for various industrial, environmental, and HVAC applications.
Exceptional Features of the YK-10LX:
1. Professional Quality: High-quality light meter designed for professional use, ensuring precise measurements.
2. Advanced Sensor Technology: Uses an exclusive photo diode and color correction filter light sensor with spectrum meeting C.I.E. photopic standards, ensuring precise and reliable measurements.
3. User-Friendly Design: Features rubber push buttons for function selection, a large LCD display for clear readout even at high ambient light levels, and an external zero adjustment for quick calibration.
4. High Accuracy and Resolution: Offers high accuracy with a range of 0 to 20,000 Lux and resolutions of 1 Lux and 10 Lux (auto range), ensuring precise measurements.
5. Durable and Portable: Constructed with a water-resistant front panel and strong, lightweight ABS plastic housing, making it easy to carry and durable for long-lasting use.
Technical Specifications:
– Display:
– Type: LCD, 21.5 mm digit height
– Measurement Functions:
– Lux:
– Range: 0 to 1,999 Lux (1 Lux resolution), 2,000 to 19,990 Lux (10 Lux resolution)
– Accuracy: ±(5% + 4d)
– General Specifications:
– Sensor: Exclusive photo diode and color correction filter, spectrum meets C.I.E. photopic
– Cosine Correction Factor: Meets standard requirements
– Over Input Indication: Display shows “1”
– Power Supply: DC 9V battery (006P, MN1604, PP3 or equivalent)
– Power Consumption: Approx. DC 3 mA
– Operating Environment:
– Temperature: 0 to 50℃ (32 to 122℉)
– Humidity: Max. 80% RH
– Dimensions:
– Main Instrument: 200 x 68 x 30 mm (7.9 x 2.7 x 1.2 inch)
– Sensor Probe: 82 x 55 x 7 mm (3.2 x 2.2 x 0.3 inch)
– Weight: 280 g (0.62 lb)
