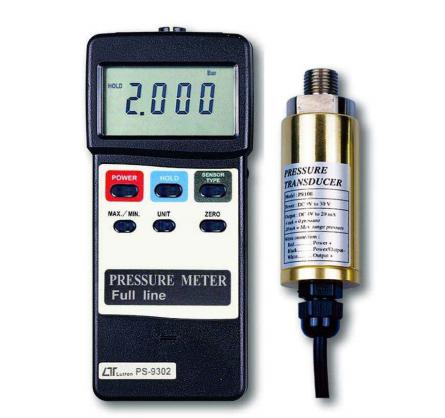

PRESSURE METER – Model: PS-9302 多功能壓力計

PS-9302 智慧型壓力計-RS232

PS-9302 PRESSURE METER

1.適用於現場量測
2.USB/RS232即時連線功能(軟體選購)
3.更換壓力感測頭，不需重新校正
4.具歸零按鍵，放大增益調整鍵
5.最大值.最小值. DATA HOLD記錄
6.尺寸：180×72×32mm

☆主機適用下列壓力感應器：
  訂購時請指定壓力規格：
  PS-9302-2Bar 解析度：0.002Bar
  PS-9302-5Bar 解析度：0.005Bar
  PS-9302-10Bar 解析度：0.01Bar
  PS-9302-20Bar 解析度：0.02Bar
  PS-9302-50Bar 解析度：0.05Bar
  PS-9302-100Bar 解析度：0.1Bar
  PS-9302-400Bar 解析度：0.5Bar
☆壓力感應器接頭：
  1/4"PT二分(19牙/英吋)，線長1M
☆1Bar=1.02Kg/cm2
☆壓力傳送器外部不防水，腔內防水，可測油及水

☆八種單位切換：
  Bar、Psi、Kg/cm²
  mm-Hg、inch-Hg
  meter-H20、inch-H20
  Atmosphere大氣壓力

☆壓力傳送器精密度：
  2Bar：±(2%+0.02Bar)
  5Bar：±(2%+0.05Bar)
  10Bar：±(2%+0.1Bar)
  20Bar：±(2%+0.2Bar)
  50Bar：±(2%+0.5Bar)
  100Bar：±(2%+1Bar)
  400Bar：±(2%+4Bar)

Technical Specifications:

– Display:

  – Type: Super large LCD

  – Size: 61 mm x 34 mm

  – Digit Size: 15 mm (0.6 inch)

– Measurement Functions:

  – Pressure Ranges:

    – 2 bar: 0.002 bar resolution

    – 5 bar: 0.005 bar resolution

    – 10 bar: 0.01 bar resolution

    – 20 bar: 0.02 bar resolution

    – 50 bar: 0.05 bar resolution

    – 100 bar: 0.1 bar resolution

    – 400 bar: 0.5 bar resolution

  – Units: bar, psi, Kg/cm², mm/Hg, inch/Hg, meter/H₂O, inch/H₂O, Atmosphere

– Accuracy:

  – ±(0.5% + 1 digit) under full scale (100 mV signal from sensor)

  – Meter only: Within 23 ± 5℃



– General Specifications:

  – Circuit: Microprocessor LSI circuit

  – Sampling Time: Approx. 0.8 second

  – Power Supply: DC 9V battery (006P, heavy duty)

  – Power Consumption: Approx. DC 8.5 mA

  – Operating Environment:

    – Temperature: 0 to 50℃

    – Humidity: Less than 80% RH

  – Dimensions: 180 x 72 x 32 mm (7.1 x 2.8 x 1.3 inch)

  – Weight: 345 g (0.76 lb)



– Pressure Sensor:

  – Exciting Voltage: DC 5V

  – Output: 100 mV for full scale

  – Optional Full Line Sensors: 2, 5, 10, 20, 50, 100, 400 bar

  – Separate Pressure Sensor for easy operation and remote measurement

– Advanced Features:

  – Zero Adjustment: Easy zero value adjustment on the front panel

  – Gain Adjustment: Push button gain adjustment for precise calibration

  – Data Hold: Stores the desired value on display

  – Memory Recall: Records maximum and minimum readings

  – Auto Shut Off: Saves battery life

  – Low Battery Indicator: Alerts when the battery is low
