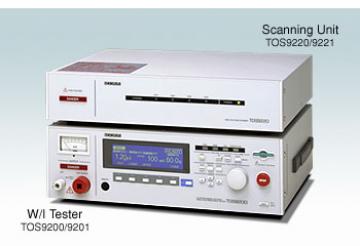

耐壓绝缘測驗儀 – TOS9200, TOS9201, TOS9220, TOS9221

型号                                     TOS-9201交直流耐压绝缘测试仪          TOS-9200交流耐压绝缘测试仪

交流耐压部分测试电压                                      AC:0.05-5.00KV

漏电流                                                        AC:0.00-110mA

时间控制                                                      0.3S-999S

直流耐压部分测试电压                   0.05-6.00KV                                                  –

漏电流                                     0.00-11mA                                                   –

时间控制                                  0.3-999S                                                      –

绝缘测试部分测试电压                                      DC:-25V- -1000V

绝缘范围                                                      0.01MΩ-9.99GΩ

时间控制                                                      0.5S-999S

一般参数显示                                                LCD液晶显示

接口界面                                                      GPPIB/RS-232C

电源                                              AC:100V-120V,200V-240V 50/60Hz

体积mm                                                     430×132×370

重量                                                                 19Kg
