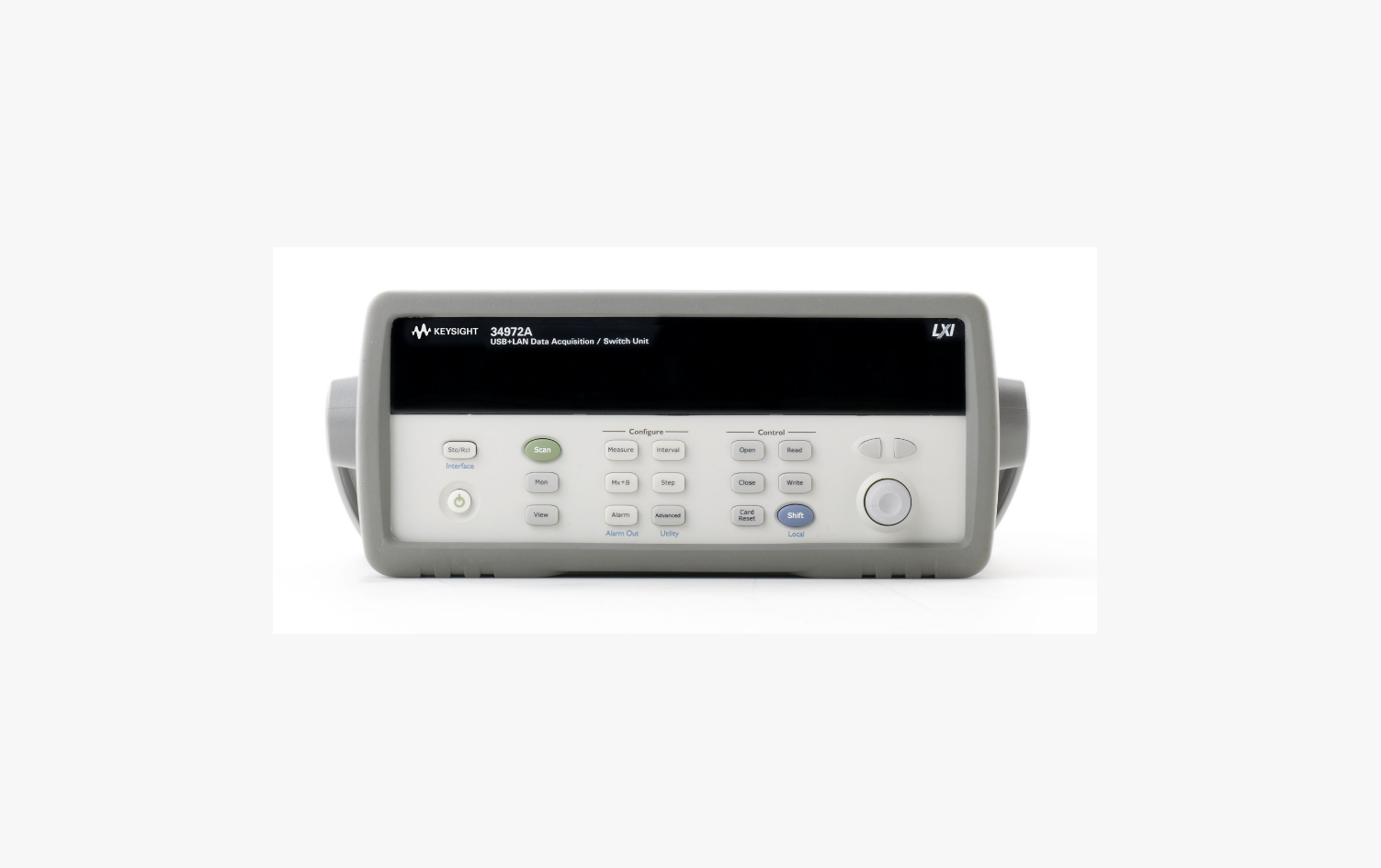

Keysight 34972A LXI Data Acquisition / Data Logger Switch Unit 數據採集儀

At a fraction of the cost of other standalone data acquisition
systems
– 3-slot mainframe with built-in 6½ digit DMM and
– 8 optional switch and control plug-in modules
– Measures and converts 11 different input signals: temperature with thermocouples, RTDs and
thermistors; dc/ac volts; 2- and 4-wire resistance; frequency and period; dc/ac current
– IO options for easy connectivity to your PC:
– 34970A: GPIB, RS-232
– 34972A: LAN, USB
– Graphical Web interface for point and click monitor and control (34972A)
– USB flash drive support to copy/log data in standalone applications (34972A)
– Includes BenchLink Data Logger Software to configure and control tests, display results and

collect data for further analysis
