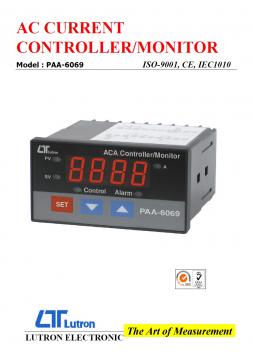

AC CURRENT CONTROLLER/MONITOR – Model: PAA-6069 交流電流控制顯示錶

* Professional ACA meter with standard DIN case ( 96 x 48 mm ) and Control/Alarm function.

* Microprocessor circuit ensures high accuracy and provide special functions and features.

* Large red LED display, high brightness and easy to read.

* Input signal ( without CT ) : ACA : 0.05 to 10.00 ACA, 40 to 400 Hz.

* True rms for ACA measurement.

* ACA input can cooperate the external CT ( Current transformer ) to expend the measurement range. The CT range can be adjusted with default.

* Control setting, Hi/Lo alarm setting.

* Control relay output, alarm relay output.

* Control Relay will make action when the reading value reach to control value.

* Alarm Relay will make action when the reading value reach to high/low alarm value.

* Hysteresis value setting for control and alarm function.

* Power : 90 ACV to 264 ACV, 50/60 Hz.

* RS232/USB computer interface.

* Option data acquisition software.
