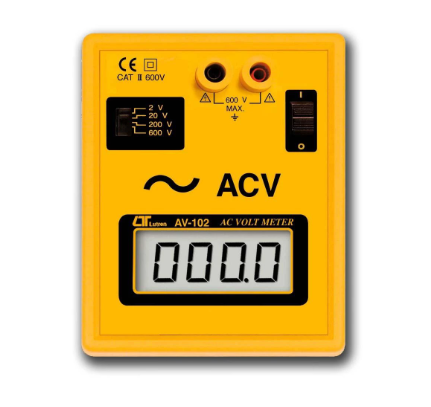

AV-102 交流電壓錶
AV-102 ACV BENCH METER
1.數位式檯面用交流電壓錶
2.測量範圍:
0~2V(解析度0.001V)
0~20V (解析度0.01V)
0~200V (解析度0.1V)
0~600V (解析度1V)
3.精確度: ±(1%+2D)讀值
4.超大型液晶顯示器,容易讀取
5.尺寸:147×117×47mm
6.附測棒
☆應用例：
故障排除/維修、教育和職業培訓、生產線測試
品質管制標準、研究設計與開發、物理實驗
學校/實驗室
Technical Specifications:
– **Display: LCD, 18 mm (0.7″) digit height
– **Measurement: AC voltage
– **Ranges and Resolutions:
– 2V x 0.001V
– 20V x 0.01V
– 200V x 0.1V
– 600V x 1V
– Accuracy: ± (1% + 2d) at reading
– Input Impedance: 10M ohms
– Frequency Response: 40 Hz – 500 Hz, sine wave
– AC/DC Converter: Average reading calibrated to RMS, sine wave
– Zero Adjustment: Automatic
– Over-Input Indication: Display shows ‘1’
– Safety Standard: IEC1010 CATII 600V
– Sampling Time: Approximately 0.4 seconds
– Operating Temperature: 0℃ to 50℃ (32℉ to 122℉)
– Operating Humidity: Less than 80% RH
– Power Supply: 006P DC 9V battery
– Power Consumption: Approximately 1.1 mA
– Dimensions: 147 x 117 x 47 mm (5.8 x 4.6 x 1.85 inches)
– Weight: 311 g (0.68 lb) including battery
– Input Terminals: Standard banana terminals (Red and Black each)
