AFG3000C Series Arbitrary/Function Generators 任意波形/函數信號發生器

AFG3000C Series Arbitrary/Function Generators

任意波形/函數信號發生器

Unmatched performance, versatility, intuitive operation, and affordability

make the AFG3000C Series of Function, Arbitrary Waveform, and Pulse

Generators the most useful instruments in the industry.

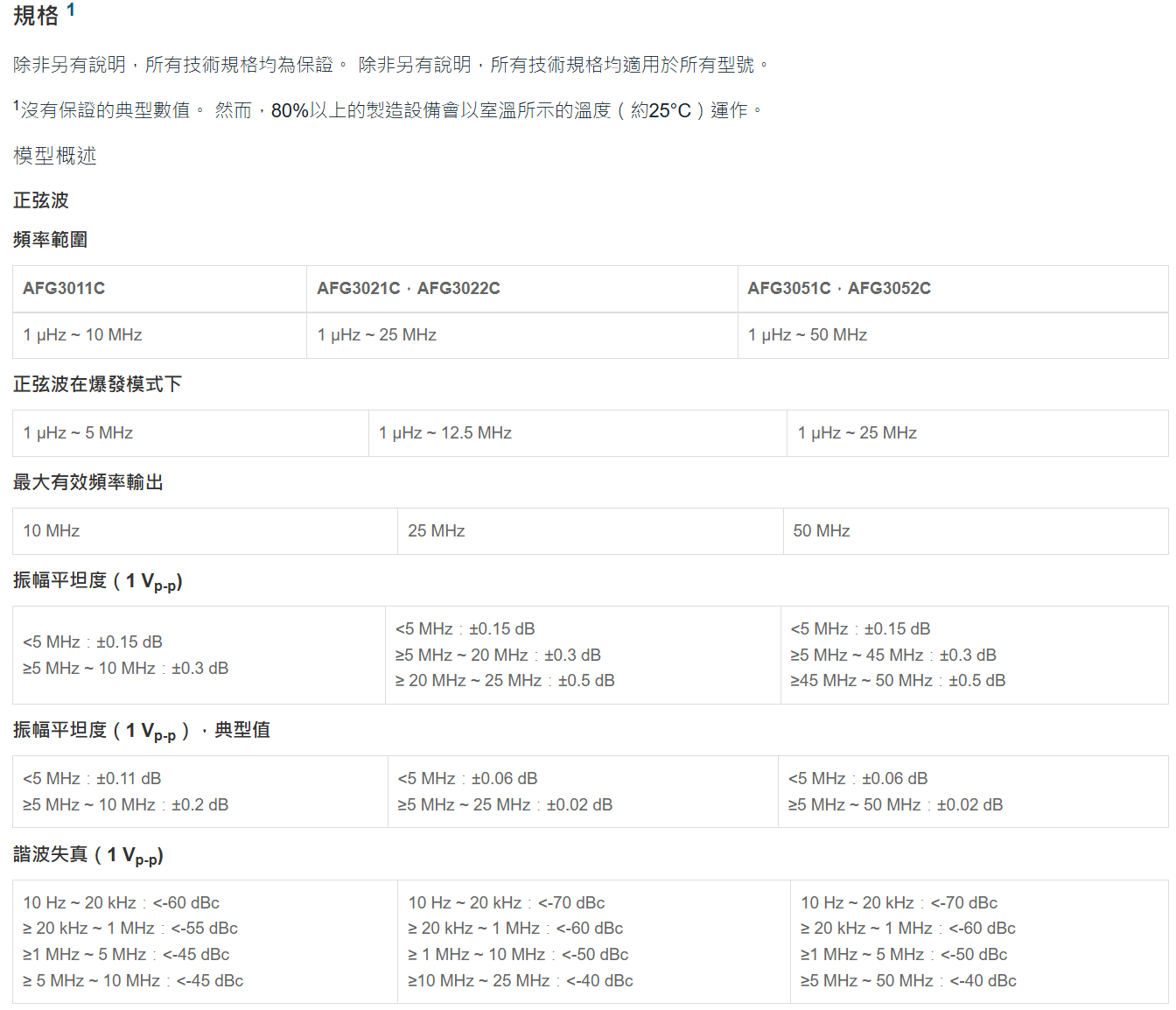

Key performance specifications

10 MHz, 25 MHz, 50 MHz, 100 MHz, 150 MHz, or 240 MHz sine

waveforms

14 bits, 250 MS/s, 1 GS/s, or 2 GS/s arbitrary waveforms

Amplitude up to 20 V p-p into 50 Ω loads

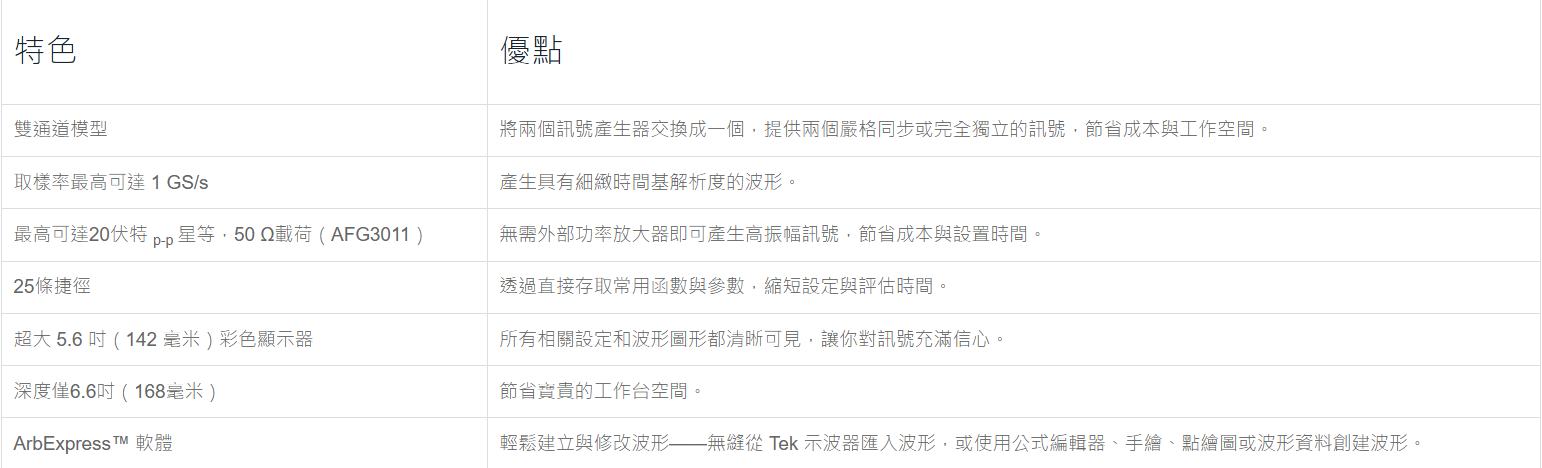

Key features

5.6 in. display for full confidence in settings and waveform shape

Multi-language and intuitive operation saves setup time

Pulse waveform with variable edge tmes

AM, FM, PM, FSK, PWM

Sweep and burst

Dual-channel models save cost and bench space

USB connector on front panel for waveform storage on memory device

USB, GPIB, and LAN

LabVIEW and LabWindows/IVI-C drivers
