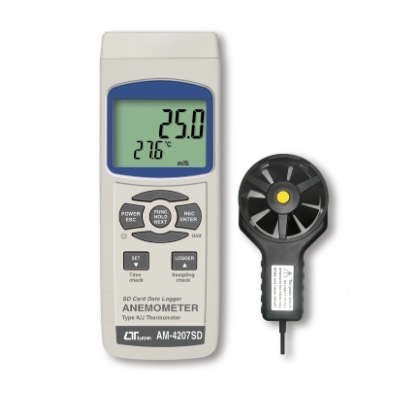

AM-4207SD 風速計+溫度計+記錄器
AM-4207SD ANEMOMETER
SD Card data logger
type K/J Temp
☆AM-4207SD 風速計+溫度計+記錄器 產品型錄
‧檢查維修空調系統
‧測量空氣流速、風速、溫度
1.即時數據紀錄儲存於SD記憶卡
資料可下載到Excle,做圖表分析
(1-16GB記憶卡選購)
2.風速範圍:0.4~25.0公尺/秒±2%
短時間承受風速：30.0m/S
3.風溫測量範圍:0~50.0°C±0.8°C
4.可使用溫度探頭輸入:
Type K:-50~1300.0°C.±0.4%
Type J:-50~1200.0°C.±0.4%
☆隨機同時購買TP-01特價供應
5.雙視窗顯示，可同時顯示風速及溫度值
6.可記錄最大值、最小值及讀值鎖定功能
7.RS-232/USB連接介面(軟體選購)
8.尺寸:203×76×45mm
9.風速單位切換：
m/S、Ft/min(FPM)、Km/h
Knots、Mile/h
10.同時紀錄日期/時間：年/月/日/十/分/秒
11.自動記錄取樣時間設定：1-3600秒
12.手動紀錄99組
Technical Specifications:
– Display:
– LCD Size: 52 mm x 38 mm
– Backlight: Green, ON/OFF
– Measurement Functions:
– Air Velocity:
– Units: m/s, Km/h, ft/min, mph, knots
– Range:
– 0.4 to 30.0 m/s
– 1.4 to 108.0 Km/h
– 80 to 5916 ft/min
– 0.9 to 67.0 mph
– 0.8 to 58.3 knots
– Resolution:
– 0.1 m/s, Km/h, mph, knots
– 1 ft/min
– Accuracy:
– ±(2% + 0.2 m/s)
– ±(2% + 0.8 Km/h)
– ±(2% + 0.4 mph)
– ±(2% + 0.4 knots)
– ±(2% + 40 ft/min)
– Air Temperature:
– Units: °C, °F
– Range: 0 to 50°C (32 to 122°F)
– Resolution: 0.1°C/°F
– Accuracy: ±0.8°C (±1.5°F)
– Type K/J Thermocouple Temperature:
– Type K Range:
– -50.0 to 1300.0°C (-58.0 to 2372.0°F)
– Type J Range:
– -50.0 to 1200.0°C (-58.0 to 2192.0°F)
– Resolution: 0.1°C/°F
– Accuracy:
– Type K: ±(0.4% + 0.5°C) / ±(0.4% + 1°F)
– Type J: ±(0.4% + 0.5°C) / ±(0.4% + 1°F)
– Data Logger:
– Sampling Time: Adjustable from 1 second to 3600 seconds
– Memory Card: SD memory card, 1 GB to 16 GB
– Power Supply:
– 6 x 1.5V AA (UM3) batteries
– DC 9V adapter (optional)
– Power Consumption:
– Normal operation (without SD card save and LCD backlight off): Approx. DC 15 mA
– With SD card save and LCD backlight off: Approx. DC 36 mA
– Operating Environment:
– Temperature: 0 to 50°C (32 to 122°F)
– Humidity: Less than 85% RH
– Dimensions:
– Main Instrument: 203 x 76 x 38 mm
– Anemometer Sensor Head: Round, 72 mm Dia.
