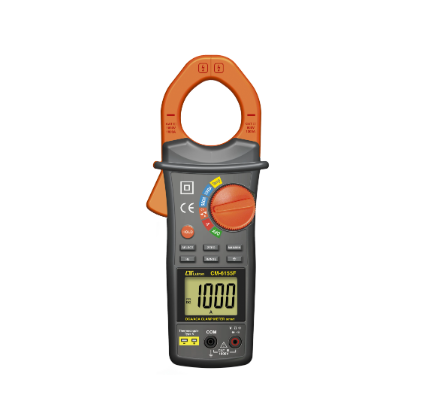

DCA/ACA CLAMP METER
鉗形表/多功能交直流鉤錶
Model : CM-6155F
Achieve Precision with a Smart and Versatile Clamp Meter
The CM-6155F DCA/ACA Clamp Meter offers accurate and reliable measurements with a professional and compact design, making it an essential tool for various applications in electrical testing, industrial environments, and maintenance.
Exceptional Features of the CM-6155F:
1. Wide Measurement Range: Measures up to 2000 A for both ACA (Alternating Current Amperes) and DCA (Direct Current Amperes), with two ranges for each (2000 A, 600 A).
2. High Accuracy and Resolution: Provides high resolution with 6000 counts A/D and accurate readings for various measurements.
3. Maximum Hold Function: Includes a max hold function for capturing peak values during measurements.
4. Temperature Measurement: Features temperature measurement capability with type K thermocouple probes.
5. Safety Compliance: Meets IEC 1010 CAT III 1000 V and CAT IV 600 V safety standards, ensuring reliable and safe operation.
Technical Specifications:
– Measurement Ranges:
– DC Voltage:
– Range: 600 mV, 6 V, 60 V, 600 V, 1000 V
– Resolution: 0.1 mV to 1 V
– Accuracy: ± (0.8% + 2d) to ± (0.8% + 1d)
– AC Voltage:
– Range: 6 V, 60 V, 600 V, 1000 V
– Resolution: 0.001 V to 1 V
– Accuracy: ± (1% + 2d)
– DC Current:
– Range: 600 A, 2000 A
– Resolution: 0.1 A to 1 A
– Accuracy: ± (1.5% + 15d) to ± (2% + 8d)
– AC Current:
– Range: 600 A, 2000 A
– Resolution: 0.1 A to 1 A
– Accuracy: ± (1.5% + 15d) to ± (2% + 8d)
– Resistance:
– Range: 600 ohm to 60 M ohm
– Resolution: 0.1 ohm to 1 M ohm
– Accuracy: ± (1% + 2d) to ± (1.5% + 2d)
– Capacitance:
– Range: 6 nF to 600 uF
– Resolution: 0.001 nF to 0.1 uF
– Accuracy: ± (3% + 5d)
– Frequency:
– Range: 40 Hz to 1 kHz
– Resolution: 0.001 kHz
– Accuracy: ± (0.5% + 2d)
– Temperature (Type K):
– Range: -68 to 1382°F
– Resolution: 0.1 °F
– Accuracy: ± (1% + 2 °F)
