MANOMETER – Model: PM-9100 壓力/差壓計

原廠產品詳情網址，歡迎瀏覽：

https://www.lutron.com.tw/en-us/246/PM-9100

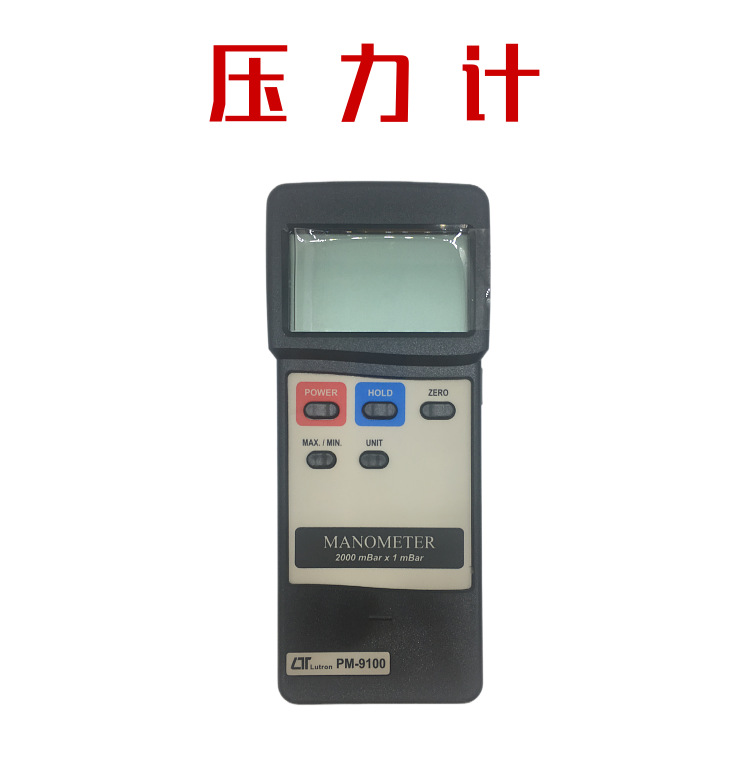

PM-9100 壓力/差壓計

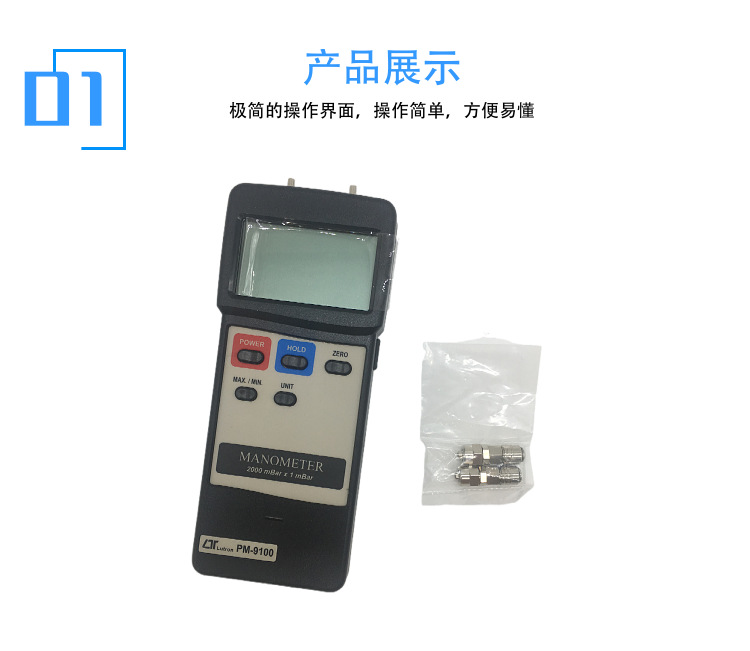

PM-9100 MANOMETER 2000 mbar Dual & differential input

1.測量範圍:
  PM-9100: 0~2000毫巴(mbar)
2.雙壓力感應器，可測量壓力及差壓
3.精確度:±2%
4.雙壓力感應器，可測量壓力及差壓
5.八種單位選擇切換:
  mbar,psi,Kg/cm²,mm/Hg,inch/Hg
  meter/H2O,inch/H2O,Atmosphere
6.讀值鎖定及記錄測量中之最大/最小值
7.RS-232/USB電腦連線(選購)
  可增購自動紀錄功能
8.尺寸:180×72×32mm

Technical Specifications:

– Display:

  – Type: Super large LCD

  – Size: 61 mm x 34 mm

  – Digit Size: 15 mm (0.6 inch)

– Measurement Functions:

  – Pressure Units:

    – mbar: 2000 mbar, resolution: 1 mbar

    – psi: 29 psi, resolution: 0.01 psi

    – Kg/cm²: 2.040 Kg/cm², resolution: 0.001 Kg/cm²

    – mmHg: 1500 mmHg, resolution: 1 mmHg

    – inchHg: 59.05 inchHg, resolution: 0.02 inchHg

    – meterH₂O: 20.40 meterH₂O, resolution: 0.01 meterH₂O

    – inchH₂O: 802 inchH₂O, resolution: 0.5 inchH₂O

    – Atmosphere: 1.974 Atmosphere, resolution: 0.001 Atmosphere

– Accuracy: ±2% Full Scale (including linearity, hysteresis, and repeatability)

– General Specifications:

  – Sensor Type: Piezoelectric sensor built inside the housing

  – Response Time: Approx. 0.8 second

  – Power Supply: 006P DC 9V battery (heavy duty)

  – Power Consumption: Approx. DC 8.5 mA
