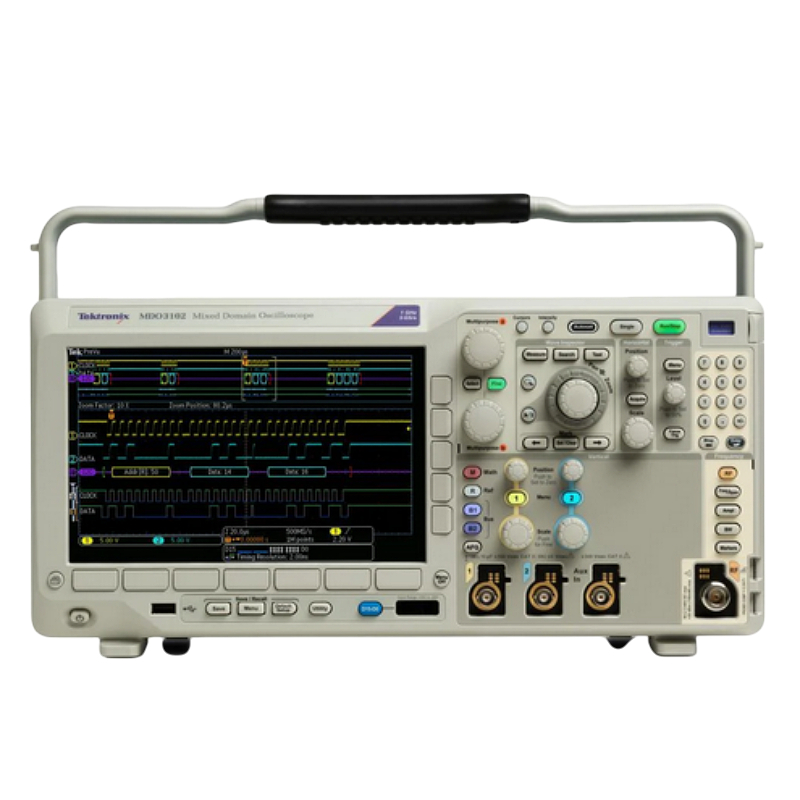

MDO3000 Series Mixed Domain Oscilloscope 混合域示波器（示波器）

MDO3000 Series Mixed Domain Oscilloscope

混合域示波器（示波器）

The ultimate 6-in-1 integrated oscilloscope, completely

customizable and fully upgradeable

Today’s integrated designs need an oscilloscope that is just as integrated –

such as the MDO3000 Mixed Domain Oscilloscope (MDO) Series. It is the

ultimate 6-in-1 integrated oscilloscope that includes an integrated spectrum

analyzer, arbitrary function generator, logic analyzer, protocol analyzer, and

digital voltmeter/counter. The MDO3000 is completely customizable and

fully upgradeable. Add the instruments and performance you need now – or

later.



Key performance specifications

1. Oscilloscope

2 and 4 analog channel models

1 GHz, 500 MHz, 350 MHz, 200 MHz, 100 MHz bandwidth models

Bandwidth is upgradable (up to 1 GHz)

Up to 5 GS/s sample rate

10 M record length on all channels

>280,000 wfm/s maximum waveform capture rate

Standard passive voltage probes with 3.9 pF capacitive loading

and 1 GHz, 500 MHz, or 250 MHz analog bandwidth

2. Spectrum Analyzer

Frequency range

Standard: 9 kHz – oscilloscope bandwidth

Optional: 9 kHz – 3 GHz

Ultra-wide capture bandwidth up to 3 GHz

3. Arbitrary Function Generator (Optional)

13 predefined waveform types

50 MHz waveform generation

128 k arbitrary generator record length

250 MS/s arbitrary generator sample rate

4. Logic Analyzer (Optional)

16 digital channels

10 M record length on all channels

121.2 ps timing resolution

5. Protocol Analyzer (Optional)

Serial bus support for I 2 C, SPI, RS-232/422/485/UART, USB 2.0,

CAN, CAN FD, LIN, FlexRay, MIL-STD-1553, ARINC-429, and

Audio standards

Digital Voltmeter / Frequency Counter (Free with product registration)

4-digit AC RMS, DC, and AC+DC RMS voltage measurements

5-digit frequency measurements
