MSO/DPO2000B Mixed Signal Oscilloscope 示波器

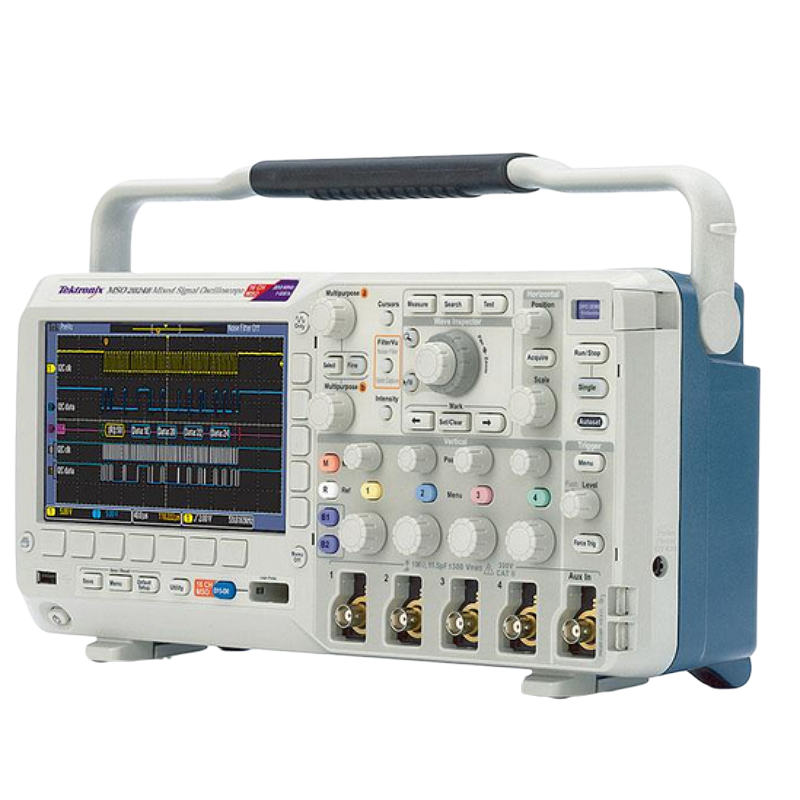

MSO/DPO2000B Mixed Signal Oscilloscope

示波器

The MSO/DPO2000B Mixed Signal Oscilloscope series is the most powerful scope in its class with advanced debug features at an entry-level price. With as many as 20 channels, you can analyze analog and digital signals with a single instrument. Combine that with automated serial and parallel bus analysis and innovative Wave Inspector® controls, you get the tools you need to speed up your debugging.

Find, Debug and Analyze Faster

Look at many points in your design with 4 analog and 16 digital channels plus 2 bus waveforms. Find anomalies fast with digital phosphor display and 125 trigger combinations, and use Wave Inspector to pan through 1M waveform points, zoom in, mark points of interest, and navigate from mark to mark. Plus: FilterVu reduces noise, not glitches.

Simplify Mixed Signal Debugging

Debug mixed signal designs with up to 4 analog and 16 digital channels, all time-correlated. Combine digital channels to show parallel buses or decode serial buses. Add in the innovative P6316 logic probe to make it easy to connect to your design and keep track of the signals.

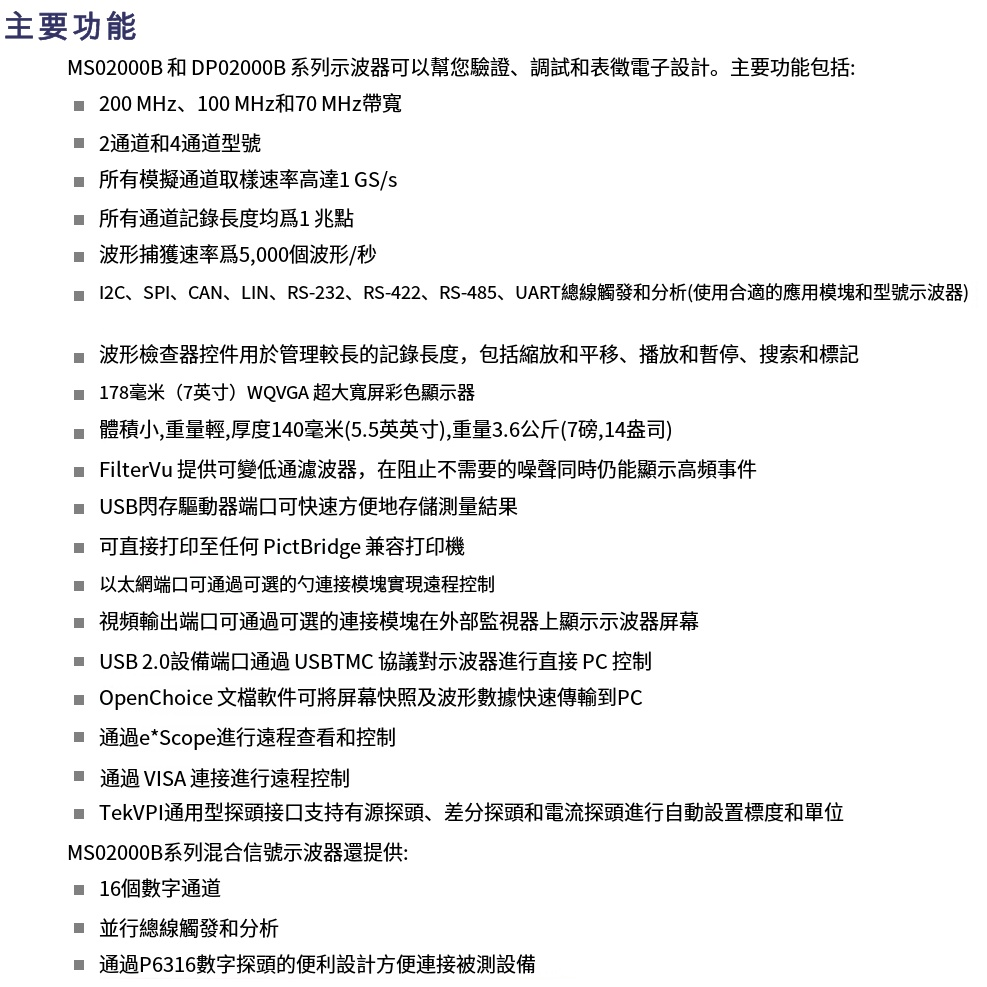

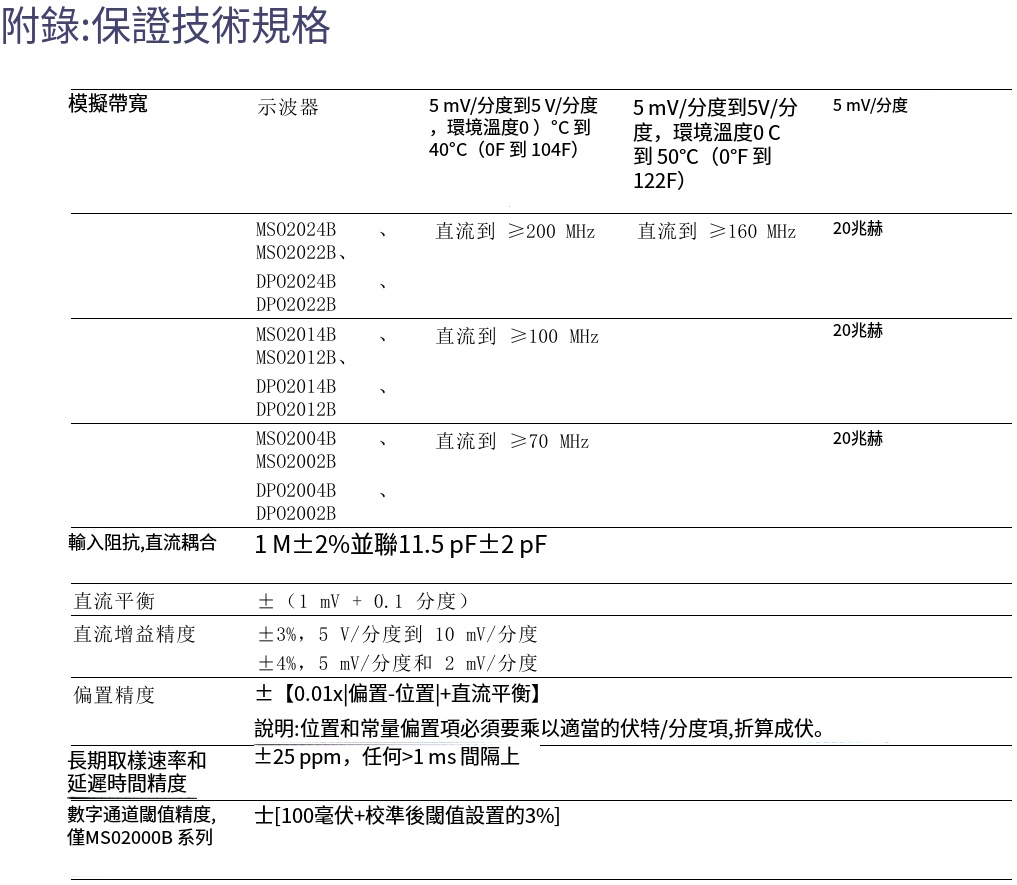

Highlights

• 16 fully integrated channels, all with 1GS/s sampling rate.
• Easy to use logic analyzer functionality.
• Define parallel or serial buses for triggering and decoding.
• Simple visualization with waveform grouping and color coding.
