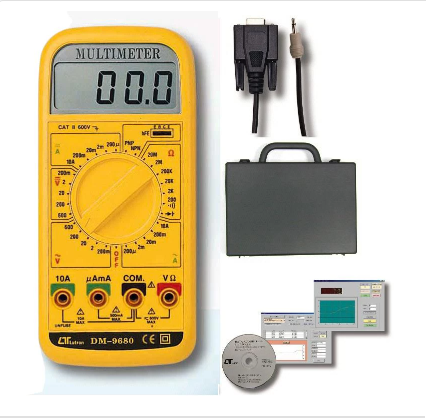

MULTIMETER, Kits, RS232 cable + software + carrying case – Model: DM-9680 KITS 萬用表套裝 / 多功能數位萬用表

原廠產品詳情網址，歡迎瀏覽：

https://www.lutron.com.tw/products/158/multimeter

MULTIMETER

Kits, RS232 cable + software + carrying case

Model : DM-9680 KITS 萬用表套裝 / 多功能數位萬用表

Technical Specifications:

– Display: 18 mm (0.7″) LCD, 3 1/2 digits, max indication 1999

– Measurement Range:

– DC Voltage: 200 mV, 2V, 20V, 200V, 1000V

– AC Voltage: 200 mV, 2V, 20V, 200V, 750V

– DC Current: 200 µA, 2 mA, 20 mA, 200 mA, 10A

– AC Current: 200 µA, 2 mA, 20 mA, 200 mA, 10A

– Resistance: 200 Ω, 2K Ω, 20K Ω, 200K Ω, 2M Ω, 20M Ω

– Capacitance: 2 nF, 20 nF, 200 nF, 2 µF, 20 µF, 200 µF, 2 mF, 20 mF

– Frequency: 20 Hz, 200 Hz, 2 KHz, 20 KHz, 200 KHz, 2 MHz, 20 MHz

– Temperature: -20℃ to 1000℃ (-4℉ to 1832℉)

– Transistor hFE: 0 – 1000 hFE values of either pnp or npn transistor

– Accuracy:

– DC Voltage: ± (0.5% + 1d)

– AC Voltage: ± (1% + 2d)

– DC Current: ± (1% + 1d)

– AC Current: ± (1.2% + 2d)

– Resistance: ± (1% + 1d) to ± (2% + 2d) depending on range

– Capacitance: ± (1.5% + 2d) to ± (5% + 2d) depending on range

– Frequency: ± (0.1% + 1d)

– Temperature: ± (3% + 3℃)

– Input Impedance: 10M ohms

– Overload Protection:

– 500V DC, 350V AC for 15 seconds for DCV and ACV up to 200V

– 1000V DC, 800V AC for 15 seconds for 1000V range

– 0.5A fuse for current ranges up to 200mA

– 10A unfused for current ranges above 200mA

– Sampling Time: Approximately 0.4 seconds

– RS232 Output: Isolated (photo-couple) RS232 serial data output, 9600 baud rate

– Operating Temperature: 0℃ to 50℃ (32℉ to 122℉)

– Operating Humidity: Less than 80% RH

– Power Supply: 006P DC 9V battery (heavy duty type)

– Power Consumption: Approximately DC 7 mA

– Dimensions: 204 x 90 x 36 mm (7.3 x 3.4 x 1.5 inches)

– Weight: 322 g (0.71 lb) including battery
