Multimeter Model: 7703

 Multimeter





萬用錶

Model : 7703





* FEATURES



• There are 32 channels for general purpose measurement.



• Relay actuation time of less than 1ms for high-speed scanning.



• 2 or 4 wire measurement.

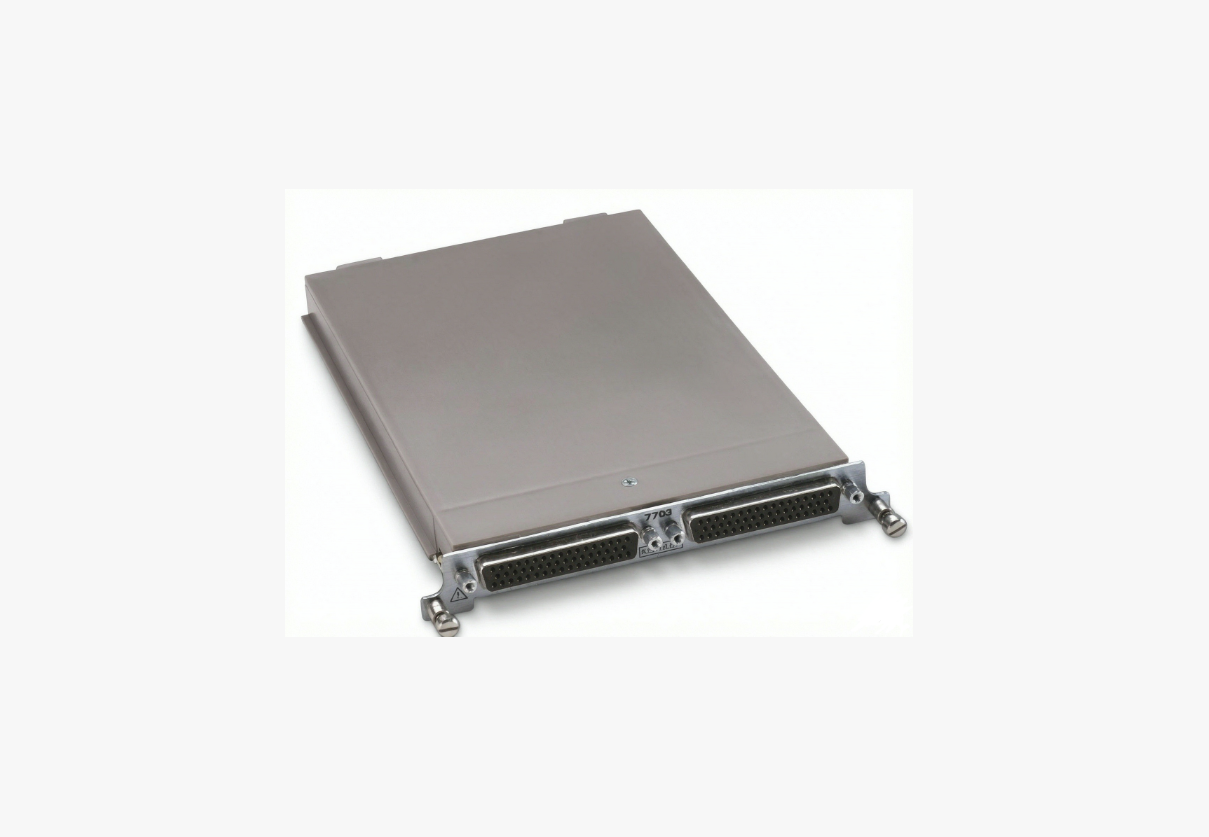

• Two 50-pin female “D-sub” connectors are standard for secure hook-up and



quick teardown.



• Configurable as two independent banks of multiplexers.



• Reed relay based design with 300 volt, 500mA; 10VA.



• Two mating connector with solder cup (Model 7788) are supplied.



• Relay closures stored in on-board memory.

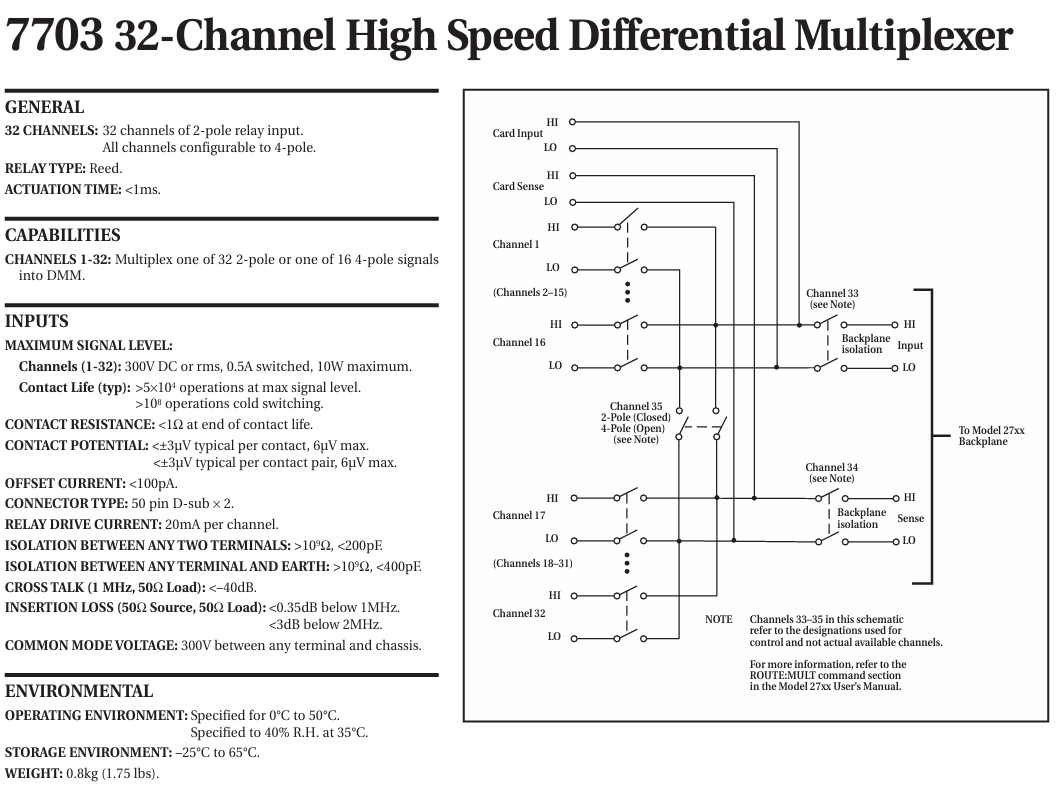

* GENERAL



32 CHANNELS: 32 channels of 2-pole relay input.



All channels configurable to 4-pole.



RELAY TYPE: Reed.



ACTUATION TIME: <1ms.



FIRMWARE: Specified for Model 2700 rev. A01, 2701 rev. A01, and 2750 rev. A01



or higher.



CAPABILITIES



CHANNELS 1-32: Multiplex one of 32 2-pole or one of 16 4-pole signals into DMM.







* INPUTS



MAXIMUM SIGNAL LEVEL:



Channels (1-32): 300V DC or rms, 0.5A switched, 10W maximum.



Contact Life (typ): >5×104 operations at max signal level.



>108 operations cold switching.



CONTACT RESISTANCE: <1Ω at end of contact life.



CONTACT POTENTIAL: <±3μV typical per contact, 6μV max.



<±3μV typical per contact pair, 6μV max.



OFFSET CURRENT: <100pA.



CONNECTOR TYPE: 50 pin D-sub×2.



RELAY DRIVE CURRENT: 20mA per channel.



ISOLATION BETWEEN ANY TWO TERMINALS: >109Ω, <200pF.



ISOLATION BETWEEN ANY TERMINAL AND EARTH: >109Ω, <400pF.



CROSS TALK (1 MHz, 50Ω Load): <–40dB.



INSERTION LOSS (50Ω Source, 50Ω Load): <0.35dB below 1MHz.



<3dB below 2MHz.



COMMON MODE VOLTAGE: 300V between any terminal and chassis.







* ENVIRONMENTAL



OPERATING ENVIRONMENT: Specified for 0°C to 50°C.



Specified to 80% R.H. at 35°C.



STORAGE ENVIRONMENT: –25°C to 65°C.



WEIGHT: 0.8kg (1.75 lbs).



ACCESSORIES AVAILABLE:



Model 7705-MTC-2 50 Pin Male to Female DSUB Cable, 2m (6.6 ft).
