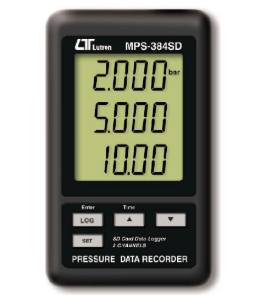

PRESSURE DATA RECORDER – Model: MPS-384SD 記憶式壓力計

MPS-384SD 壓力記錄器-三壓力

MPS-384SD PRESSURE DATA RECORDER

SD Card data logger Patent

‧壁掛/桌立兩用
  具壁掛孔設計、桌立腳架
‧壓力傳送器(選購)
  2BAR/5BAR/10BAR/20BAR/50BAR
  100BAR/400BAR

1.TR-PS2W兩線式壓力傳送器(選購)
2.同時顯示記錄三組壓力
3.輸入訊號：直流4~20mA，不含線
  最長引線距離10M
4.電源：
  3號電池*6
  直流9伏特外接電源(選購)
5.八種單位選擇:
  bar、psi、kg/cm²、mm/Hg、inch/Hg
  inch/H²O、Atmosphere、meter/H²O
6.尺寸：132x80x32mm
7.壓力傳送器(選購)精確度:±1%
  接頭1/4"PT二分(19牙/英吋)，線長1M

☆內建SD卡紀錄器功能，同時紀錄時間/日期
  取樣時間可設定：
  5/10/30/60/120/300/600秒
☆自動取樣功能：
  顯示數字變動超過10D，自動記錄一次
☆RS-232/USB電腦介面(選購)
  可同時執行SD紀錄
☆Excel記錄繪圖沒煩惱：

☆壓力傳送器外部不防水，腔內防水，可測油及水

Technical Specifications:

– Measurement Range and Resolution:

  – Sensor Types:

    – 2 bar, 5 bar, 10 bar, 20 bar, 50 bar, 100 bar, 200 bar, 400 bar

  – Resolution:

    – 2 bar: 0.002 bar

    – 5 bar: 0.005 bar

    – 10 bar: 0.01 bar

    – 20 bar: 0.02 bar

    – 50 bar: 0.05 bar

    – 100 bar: 0.1 bar

    – 200 bar: 0.2 bar

    – 400 bar: 0.5 bar

  – Unit Selection: Bar, PSI, Kg/cm², inch Hg, mm Hg, inch H₂O, meter H₂O, Atmosphere, kPa

– Display: Large LCD, 60 mm x 50 mm

– Memory Card: SD memory card (1 GB to 16 GB)

– Input Signal: Linear, 4 to 20 mA

– Sampling Time:

  – Adjustable: 5/10/30/60/120/300/600 seconds

  – Auto: Saves data when the measuring value changes by more than ±10 digits

– Accuracy:

  – Span: ±(0.15% + 2d) F.S. @ 23 ± 5℃

  – Zero: ±(0.1% + 2d) F.S.

– Power Supply:

  – DC 9V adapter (included)

  – DC 1.5V (UM-4/AAA) battery x 6 PCs for clock power supply

– Power Consumption:

  – Approximately DC 120 mA (without relays ON)

  – Approximately DC 200 mA (with two relays ON)

– Dimensions: 132 x 80 x 32 mm (5.2 x 3.1 x 1.3 inches)

– Weight: 199 g (0.44 lb)
