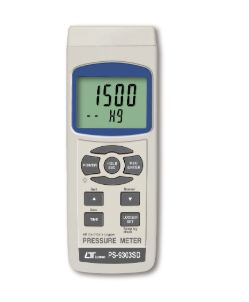

PRESSURE METER, full line – Model: PS-9303SD記錄器/多功能壓力計

PS-9303SD 記錄器/多功能壓力計

PS-9303SD PRESSURE METER SD Card, data logger Patent

適用：品管監控、容器/管件洩漏試驗
     工廠維修保養、氣壓/水壓自動控制
     冷凍空調管路維護

☆八種單位切換：
  Bar、Psi、Kg/cm²
  mm-Hg、inch-Hg
  meter-H20、inch-H20
  Atmosphere大氣壓力
☆儀表精密度：±(0.5%FS+1D)
  (壓力感應器精度另計)

‧最大值、最小值紀錄及讀值鎖定功能
‧USB/RS232即時連線功能(軟體選購)

☆更換壓力感測頭，不需重新校正
☆Excel記錄繪圖沒煩惱：


☆SD卡記錄功能：
  可設定紀錄時間：1-3600秒
  可記錄日期/時/分/秒
  具有單次取樣紀錄功能
☆可加購交流電源，無限延長紀錄時間
☆SD卡紀錄/即時電腦連線(選購)可同時使用

☆主機適用下列壓力感應器：
  訂購時請指定壓力規格：
  PS-9303-2Bar 解析度：0.002Bar
  PS-9303-5Bar 解析度：0.005Bar
  PS-9303-10Bar 解析度：0.01Bar
  PS-9303-20Bar 解析度：0.02Bar
  PS-9303-50Bar 解析度：0.05Bar
  PS-9303-100Bar 解析度：0.1Bar
  PS-9303-400Bar 解析度：0.5Bar
☆壓力傳送器精密度：
  2Bar：±(2%+0.02Bar)
  5Bar：±(2%+0.05Bar)
  10Bar：±(2%+0.1Bar)
  20Bar：±(2%+0.2Bar)
  50Bar：±(2%+0.5Bar)
  100Bar：±(2%+1Bar)
  400Bar：±(2%+4Bar)
☆壓力傳送器接頭：
  1/4"PT二分(19牙/英吋)，線長1M
☆1Bar=1.02Kg/cm2
☆壓力傳送器外部不防水，腔內防水，可測油及水

1atm大氣壓=1013.2 hPa百帕=760mmHg毫米汞柱
1hPa=10³dyn/cm²=1mbar
**此表在海平面大氣中量測壓力為0

Technical Specifications:

– Display:

  – Type: Large LCD with green backlight

  – Size: 52 mm x 38 mm

– Measurement Functions:

  – Pressure Units:

    – Bar: 2, 5, 10, 20, 50, 100, 200, 400 bar

    – Psi: 29, 72.5, 145, 290, 725, 1450, 2900, 5800 psi

    – Kg/cm²: 2.040, 5.095, 10.19, 20.40, 50.95, 101.9, 204.0, 408.0 kg/cm²

    – mm Hg: 1500, 3750, 7500, 15000, 37500, 75000, 150000, 300000 mm Hg

    – inch Hg: 59.05, 147.6, 295.2, 590.5, 1476, 2952, 5905, 11810 inch Hg

    – meter H₂O: 20.40, 50.95, 101.9, 204.0, 509.5, 1019, 2040, 4075 meter H₂O

    – inch H₂O: 802, 2006, 4010, 8020, 20050, 40100, 80200, 160600 inch H₂O

    – Atmosphere: 1.974, 4.935, 9.87, 19.74, 49.35, 98.7, 197.4, 394.5 Atmosphere

– Accuracy: ±0.5% Full Scale (FS) ± 1 digit

– General Specifications:

  – Sensor Type: External pressure sensor with 100 mV output for full scale

  – Power Supply: DC 1.5V batteries (UM3, AA) x 6 PCs, or DC 9V adapter

  – Power Consumption:

    – Normal operation (without SD card and LCD backlight off): Approx. DC 14 mA

    – With SD card and LCD backlight off: Approx. DC 37 mA

    – Additional power consumption with LCD backlight on: Approx. DC 12 mA

  – Operating Environment:

    – Temperature: 0 to 50℃

    – Humidity: Less than 80% RH

  – Dimensions: 177 x 68 x 45 mm (7.0 x 2.7 x 1.9 inch)

  – Weight: 489 g (1.08 lb)

– Data Logger:

  – Automatic: 1 sec to 8 hours 59 min 59 sec

  – Manual: Push the data logger button once to save data

– SD Card Capacity: 1 GB to 16 GB

Accessories Included:

– Instruction Manual: 1 PC

– Hard Carrying Case: 1 PC
