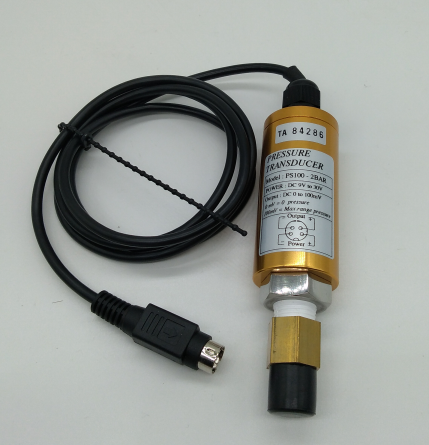

PRESSURE SENSOR – Model: PS-100-XXBAR壓力感測頭/ 壓力傳感器

PS-100-XXBAR 壓力感測頭/ 壓力傳感器

PS-100-XXBAR PRESSURE SENSOR

1.壓力感測頭，使用主機PS-9302
2.輸出：100mV DC滿刻度
3.尺寸：直徑30mm，長85mm
  1/4"二分PS接頭(19牙/英吋)線長1M
4.重：160g
5.訂購時請指定壓力規格與型號：
 2 Bar---型號:PS-100-02BAR
 5 Bar---型號:PS-100-05BAR
 10 Bar--型號:PS-100-10BAR
 20 Bar--型號:PS-100-20BAR
 50 Bar--型號:PS-100-50BAR
 100 Bar-型號:PS-100-100BAR
 400 Bar-型號:PS-100-400BAR

☆壓力傳送器精密度：
  2Bar：±(2%+0.02Bar)
  5Bar：±(2%+0.05Bar)
  10Bar：±(2%+0.1Bar)
  20Bar：±(2%+0.2Bar)
  50Bar：±(2%+0.5Bar)
  100Bar：±(2%+1Bar)
  400Bar：±(2%+4Bar)

Technical Specifications:

– Models and Capacities:

  – PS100-2BAR: 2 BAR (29 PSI)

  – PS100-5BAR: 5 BAR (72.5 PSI)

  – PS100-10BAR: 10 BAR (145 PSI)

  – PS100-20BAR: 20 BAR (290 PSI)

  – PS100-50BAR: 50 BAR (725 PSI)

  – PS100-100BAR: 100 BAR (1450 PSI)

  – PS100-400BAR: 400 BAR (5800 PSI)

– Application: Optional pressure transducer for the pressure meter PS-9302, PS-9303SD.

– Overload Protection: 150% max. capacity

– Supply Voltage: DC 9V

– Transducer: 1/4″ NPT or 1/4″ PS

– Port Connector: Includes an adapter to convert the 1/4″ NPT to 1/4″ PS

– Span Accuracy: ±1% F.S. within 10 to 40℃

– Zero Accuracy: ±2% F.S. within 10 to 40℃

– Operating Temperature: 0 to 60℃ (32 to 140℉)

– Operating Humidity: Max. 80% RH

– Output: Full capacity output = 100 mV DC

– Size: 30 mm diameter x 85 mm length

– Weight: 160 g

– Cable Length: 1 meter

– Wire Connection: 4 pins standard DIN plug to cooperate with PS-9302 (PS-9303SD) input socket

  – 2 pins for 5V DC power supply

  – 2 pins for 100 mV DC input signal

 Included Accessories:

– Adapter connector to convert 1/4″ NPT to 1/4″ PS
