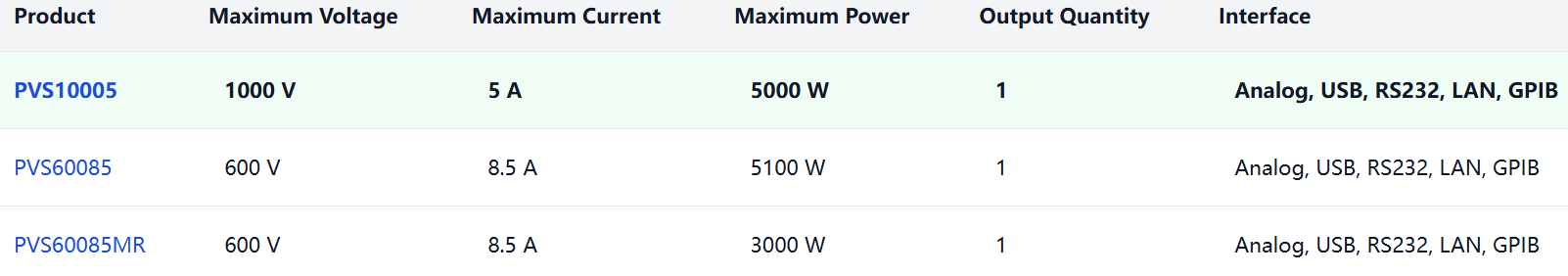

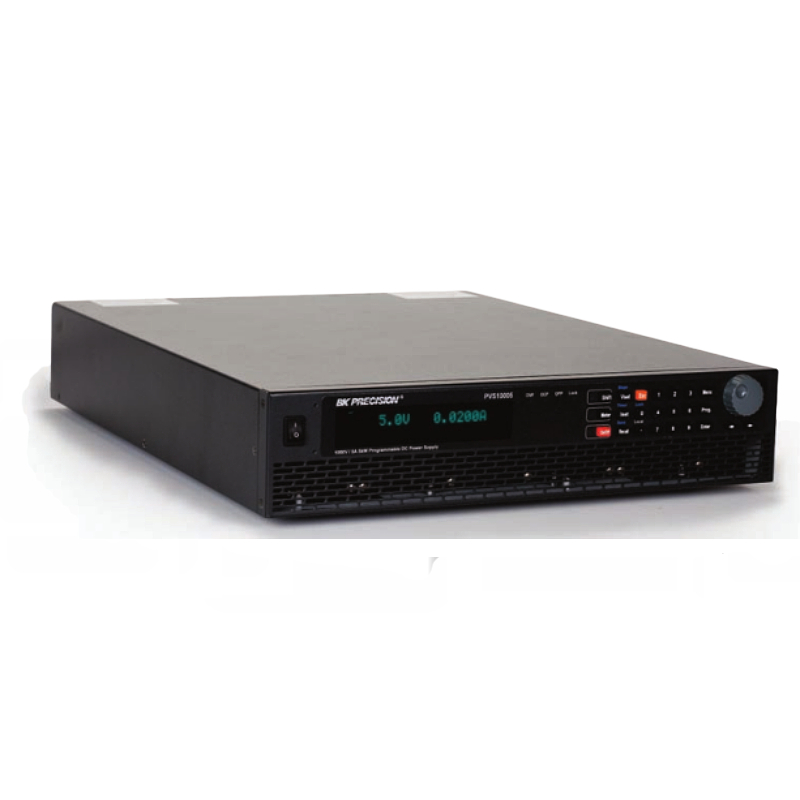

The PVS10005, PVS60085, and PVS60085MR

programmable DC power supplies offer clean

output power up to 5.1 kW, excellent regulation,

and fast transient response time characteristics in

an industry leading 2U package.

These power supplies provide many useful

features such as high programming resolution,

multiple remote interfaces for test systems, and a

built-in SAS (solar array simulator) function to

generate PV (photovoltaic) I-V curves. The

optional SAS software allows users to consistently

reproduce various I-V curves to test a PV

inverter’s MPPT efficiency.

For benchtop applications, this series provides an

intuitive user interface with full keypad and rotary

knob. System integrators benefit from the standard

USB (virtual COM), RS232, GPIB, and LAN

interfaces supporting SCPI commands. Free

application software and a complete set of

LabVIEW drivers are available to reduce



Features & Benefits

I Compact, high power density, 2U package

I Output up to 1000 V / 5 A (PVS10005) and

600 V / 8.5 A (PVS60085 & PVS60085MR)

I Convenient single-phase AC input

configuration

I Bright VFD display

I High voltage and current resolution of 0.1 V,

0.1 mA (PVS10005) or 10 mV, 0.2 mA

(PVS60085 & PVS60085MR)

I Fast transient response time of ≤ 0.5 ms

I Adjustable voltage and current slope (rise and

fall times)

I List mode: 9 user-defined programs with up to

100 programmable steps each

I Built-in SAS function for storage of up to 16

I-V curves with Voc, Isc, Vmp, and Imp

parameters and 1024-point table

I Store up to 100 different instrument settings

to internal memory

I Control up to 30 power supplies from one PC

via the RS485 interface

I Timer-controlled output (1 s to 1000 hrs)

I Standard USB (virtual COM), RS232, RS485,

GPIB and LAN interfaces

I External analog programming and monitoring

interface

I Extensive protection features: OVP, OCP, OPP,

OTP, foldback protection mode, and key-lock

function

I Front to rear airflow allows for efficient cooling

in high rack density environments

I Master/slave mode for up to four units in

parallel (20.4 kW total)

I LabVIEW™ driver and softpanel for remote

control, test sequence generation, and

datalogging available
