ScopeMeter
手持式示波器
Model : 190-062
The Fluke ScopeMeter® 190-062 combine the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Designed for plant maintenance engineers and technicians, these tough ScopeMeter® test tools go into harsh, dirty, and hazardous industrial conditions to test everything from micro-electronics to power electronics applications.
The 190-062 ScopeMeter® is the one test tool you will reach for to tackle just about any troubleshooting task. They include a multimeter, TrendPlot™ and ScopeRecord™ roll paperless recorder modes and hands free operation with Connect-and-View™ triggering, and much more:

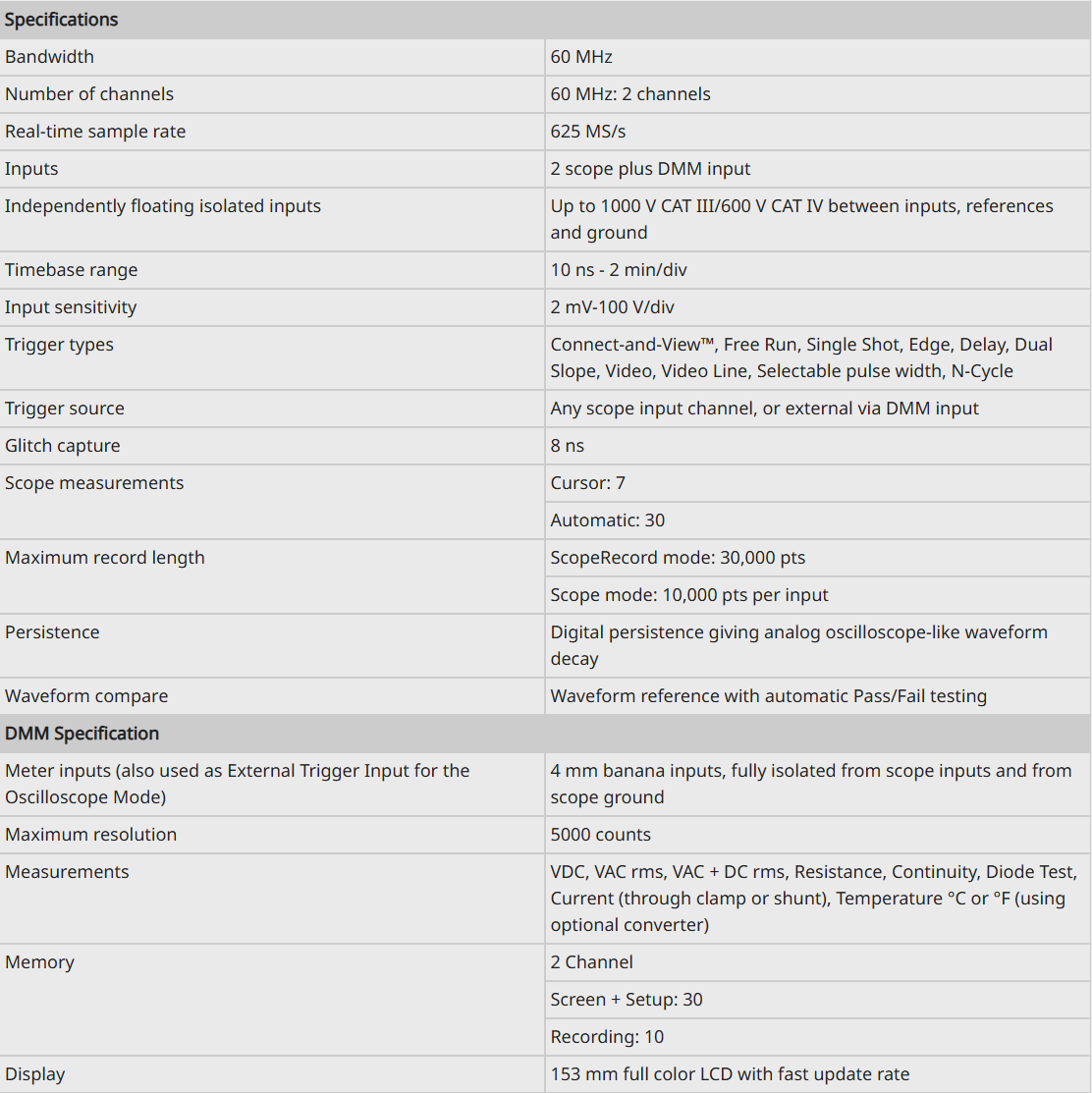

Specifications
Bandwidt: 60 MHz
Number of channels: 60 MHz, 2 channels
Real-time sample rate: 625 MS/s
Inputs: 2 scope plus DMM input
Independently floating isolated inputs: Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
Timebase range: 10 ns – 2 min/div
Input sensitivity: 2 mV-100 V/div
Trigger types: Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle
Trigger source Any scope input channel, or external via DMM input
Glitch capture 8 ns
Scope measurementsCursor: 7
Automatic: 30
Maximum record length
ScopeRecord mode: 30,000 pts
Scope mode: 10,000 pts per input
Persistence: Digital persistence giving analog oscilloscope-like waveform decay
Waveform compare: Waveform reference with automatic Pass/Fail testing
* DMM Specification
Meter inputs (also used as External Trigger Input for the Oscilloscope Mode)
4 mm banana inputs, fully isolated from scope inputs and from scope ground
Maximum resolution: 5000 counts
Measurements: VDC, VAC rms, VAC + DC rms, Resistance, Continuity, Diode Test, Current (through clamp or shunt), Temperature °C or °F (using optional converter)
Memory
2 Channel
Screen + Setup: 30
Recording: 10
Display: 153 mm full color LCD with fast update rate
* Environmental Specifications
Operating temperature
0°C to 40°C Including Batteries
0°C to 50°C Excluding Batteries
Storage temperature: -20°C to +60°C
Operating altitude:
Up to 2,000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V
Up to 3,000 m (10,000 ft) for CAT III 600 V, CAT II 1000 V
* Safety Specifications
Electrical safety: 1,000 V CAT III/600 V CAT IV (EN61010-1)
* Mechanical and General Specifications
Size: 270 x 190 x 70 mm
Weight: 2.2 kg
Warranty: 3-years on main instrument, 1-year on accessories
Li-Ion battery: BP290 2400 mAh Li-ion battery up to 4 hours included standard
* Included Accessories
VPS410 Voltage Probe Sets (one red, one blue)
TL175 TwistGuard™ safety designed Test Lead Set (red and black)
BC190 Battery Charger/mains Adapter
BP290 2400 mAh Li-ion Battery
Handstrap (affixed to instrument)
Hangstrap
Multi-Language User Manuals on CD-Rom
FlukeView ScopeMeter® demo package (restricted functionality)
USB Interface Cable
Warranty Three years on main instrument, one year on accessories
