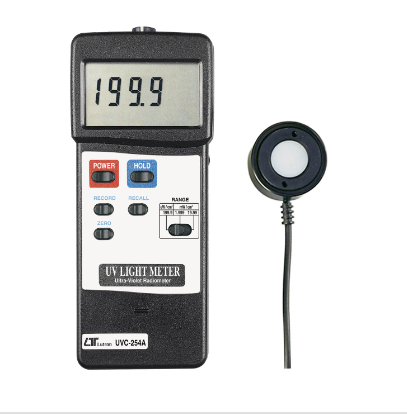

UVC-254A UVC紫外線光強度計
UVC-254A UVC LIGHT METER

☆獨家UVC傳感器(帶校正濾鏡)

☆UVA、UVB、UVC紫外線 相關知識及比較

1.UVC波長254nm紫外線光強度測量
2.測量範圍：
199.9μW/cm²，1.999mW/cm²
19.99 mW/cm²
3.精確度：±(6%+2D)FS
4.微處理電路提供高精確測量
5.超大液晶顯示器
6.記錄最大值、最小值、平均值
數據保持功能
7.歸零調整按鈕
8.自動關機功能，延長電池壽命
9.電源：9伏特電池
10.RS-232/USB電腦連線(選購)
11.尺寸:180×72×32mm

Technical Specifications:

– Display:

– Type: Large LCD, 13 mm (0.5 inch)

– Dual function display

– Measurement Functions:

– Ranges:

– 199.9 µW/cm² with a resolution of 0.1 µW/cm²

– 1.999 mW/cm² with a resolution of 0.001 mW/cm²

– 19.99 mW/cm² with a resolution of 0.01 mW/cm²

– Accuracy: ±(3% FS + 2 digits)

– Spectral Response: Band pass 200-280 nm, centered at 254 nm

– Sensor:

– Type: Exclusive photo diode with UVC correction filter

– Dimensions: 38 mm DIA x 25 mm

– General Specifications:

– Circuit: Custom one-chip microprocessor LSI circuit

– Power Supply: 9V battery (006P, MN1604, PP3) or equivalent, heavy duty or alkaline

– Power Consumption: Approx. DC 5.3 mA

– Operating Temperature: 0 to 50℃ (32 to 122℉)

– Operating Humidity: Max. 80% RH

– Dimensions: Main instrument: 180 x 72 x 32 mm (7.1 x 2.8 x 1.3 inch)

– Weight: 355 g (0.77 lb, including batteries)
