VC-9200真空压力计

*测量范围:0～1500毫巴(mbar)

*精确度:±1%

*八种单位选择切换:mbar,Kpa,Pa,toor,mm/Hg,micrn,inch/Hg,Psi

*读值锁定及记录测量中之最大/最小值

*RS-232连接介面(软体选购)

*SIZE:180*72*32mm

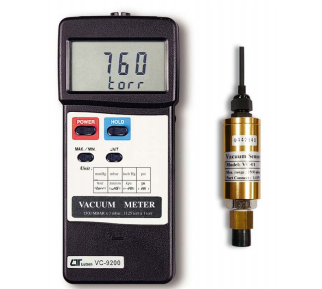

VACUUM METER VC-9200Product Overview
Achieve Precision and Versatility with a Professional Vacuum Meter



The VC-9200 Vacuum Meter provides accurate and reliable measurements of absolute vacuum and absolute pressure, making it an essential tool for various industrial, laboratory, and environmental applications.



Exceptional Features of the VC-9200:



1. Wide Measurement Range: Measures from 1 to 1500 mbar with overload protection up to 2000 mbar, suitable for a variety of applications including automotive, industrial, laboratory, heating, ventilation, and medical.



2. High Accuracy and Resolution: Utilizes a microprocessor circuit that ensures maximum possible accuracy and provides special functions and features, with high resolution for precise measurements.



3. User-Friendly Design: Equipped with a large LCD display (61 mm x 34 mm) for easy reading, and user-friendly controls including data hold, memory recall for maximum and minimum readings, and auto power off to save battery life.



4. Versatile Measurement Units: Supports eight kinds of display units (torr, mm Hg, micron, mbar, KPa, Pa, inch Hg, psi), selectable by push button on the front panel.



5. Advanced Connectivity: Includes RS232 PC serial interface for data output, enhancing data management and integration with other systems.



Technical Specifications:



– Display:

– Type: Large LCD

– Size: 61 mm x 34 mm

– Digit Size: 15 mm (0.6 inch)



– Measurement Functions:

– Pressure Units:

– mbar: 0 to 1500 mbar (Resolution: 1 mbar)

– KPa: 0 to 150.0 KPa (Resolution: 0.1 KPa)

– Pa: 0 to 150,000 Pa (Resolution: 100 Pa)

– torr: 0 to 1125 torr (Resolution: 1 torr)

– mm Hg: 0 to 1125 mm Hg (Resolution: 1 mm Hg)

– micron: 0 to 1125,000 micron (Resolution: 1000 micron)

– inch Hg: 0 to 44.30 inch Hg (Resolution: 0.02 inch Hg)

– psi: 0 to 21.75 psi (Resolution: 0.01 psi)

– Accuracy: ±1% F.S. (Full Scale), includes linearity, hysteresis, and repeatability



– Functionality:

– Data Hold Function

– Memory Recall for Maximum and Minimum Readings

– Auto Power Off to save battery life

– Manual Power Off by push button

– RS232 PC Serial Interface for data output

– Sampling Time: Approx. 0.8 second



– Sensor:

– Type: Heavy duty sensor for air, oil gas, and liquid vacuum measurements

– Structure: Separate probe for easy operation



– Power Supply:

– 006P DC 9V battery (heavy duty type)

– Power Consumption: Approx. DC 6.0 mA



– Operating Environment:

– Temperature: 0 to 50℃ (32 to 122℉)

– Humidity: Less than 80% RH



– Dimensions:

– Main Instrument: 180 x 72 x 32 mm (7.1 x 2.8 x 1.3 inches)

– Sensor Probe: 90 mm x 30 mm Dia.



– Weight:

– Main Instrument: 220 g (0.48 lb)

– Sensor Probe: 175 g (0.39 lb)



Accessories Included:



– Instruction Manual: 1 PC

– Sensor Probe: 1 PC

– Hard Carrying Case: 1 PC



Optional Accessories:



– Data Acquisition Software (SW-U801-WIN, Windows version)

– RS232 Cable (UPCB-01)

– USB Cable (USB-01)



Advanced Features:



– Microprocessor Circuit: Ensures high accuracy and special functions.

– Versatile Measurement Units: Provides flexibility for various measurement needs.

– Data Hold Function: Freezes the current reading value for convenient recording.

– Max/Min Value Memory: Stores the maximum and minimum values for easy reference.

– Auto Power Off: Conserves battery life by shutting off the meter automatically.

– Durable Construction: Strong and lightweight ABS plastic housing for long-lasting use.



Applications:



– Automotive: Measure vacuum levels in automotive systems.

– Industrial Monitoring: Monitor vacuum and pressure levels in industrial settings.

– Laboratory Research: Conduct detailed analysis of vacuum and pressure in scientific studies and experiments.

– Medical: Ensure proper vacuum levels in medical devices and environments.



Invest in the VC-9200 Vacuum Meter for precise and reliable vacuum and pressure measurements, ensuring high performance and versatility in various industrial, laboratory, and environmental applications.
