VIBRATION METER  振動測震儀

VIBRATION METER

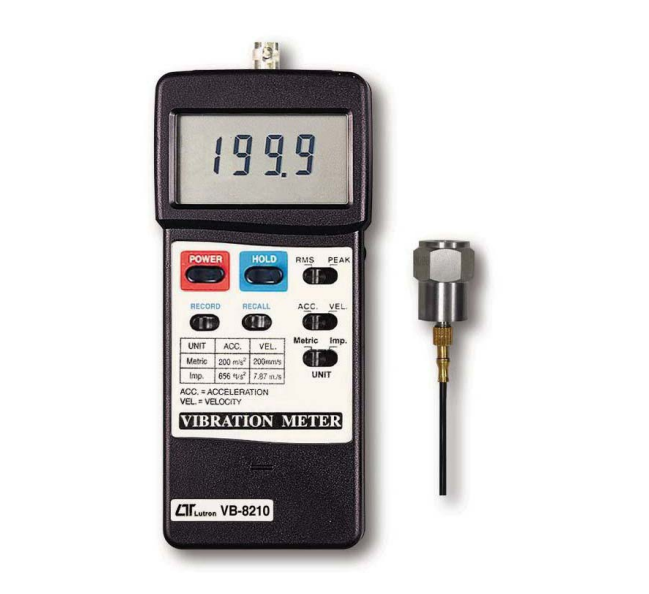

VB-8210
Product Overview
Achieve Precision and Reliability with a Professional Vibration Meter



The VB-8210 Vibration Meter provides accurate and reliable vibration measurements for industrial machinery, making it an essential tool for maintenance and condition monitoring.



Exceptional Features of the VB-8210:



1. Industrial Vibration Monitoring: Ideal for monitoring industrial machinery to detect poor balance, misalignment, and structural looseness that increase vibration levels, indicating the need for maintenance.



2. High Accuracy Measurement: Measures velocity up to 200 mm/s (7.87 inch/s) and acceleration up to 200 m/s² (656 ft/s²) with high accuracy, ensuring precise monitoring of machine conditions.



3. Wide Frequency Range: Covers a frequency range from 10 Hz to 1 kHz, meeting ISO 2954 sensitivity requirements for comprehensive vibration analysis.



4. RMS and Peak Measurement: Capable of both RMS and peak measurements, allowing for detailed analysis of vibration levels.



5. User-Friendly Design: Features a large LCD display with data hold, memory function for maximum and minimum readings, and auto shut-off to save battery life.



Technical Specifications:



– Measurement Range and Resolution:

– Velocity:

– Range: 0.5 to 199.9 mm/s (0.02 to 7.87 inch/s)

– Accuracy: ±(5% + 2d) at 160 Hz and 80 Hz, 23 ± 5℃

– Resolution: 0.1 mm/s, 0.01 inch/s

– Acceleration:

– Range: 0.5 to 199.9 m/s² (2 to 656 ft/s²)

– Accuracy: ±(5% + 2d) at 160 Hz and 80 Hz, 23 ± 5℃

– Resolution: 0.1 m/s², 1 ft/s²



– Frequency Range: 10 Hz to 1 kHz



– Display:

– Type: Super large LCD

– Size: 61 mm x 34 mm

– Digit Size: 15 mm (0.6 inch)



– Functions:

– RMS and Peak value measurement

– Data hold to freeze the desired reading

– Memory function to record maximum and minimum readings

– Auto power off and manual power off

– RS-232 computer interface for data output
