VB-8220 位移振動計
VB-8220 VIBRATION METER

‧震動位移檢測必備
‧機械檢修保養必備

．衝擊瞬間速度、加速度、位移量 測量與紀錄
．可人工換算G值，1G=9.81 m/s²
．可人工換算衝擊力量F=ma(牛頓第二運動定律)
物理牛頓第二運動定律實驗/驗證必備教學儀器

1.測量範圍:
速度(VEL)0.5~199.9mm/s
加速度(ACC)0.5~199.9m/s²
位移(DSP)：0.005～1.999mm
2.頻率範圍：10Hz～1KHz
3.精確度: ±5%.
4.讀值鎖定及記錄測量中之最大/最小值
5.RS-232/USB連接介面.(軟體選購)
6.尺寸:180×72×32mm
7.符合ISO 2954標準

☆附磁性感測頭

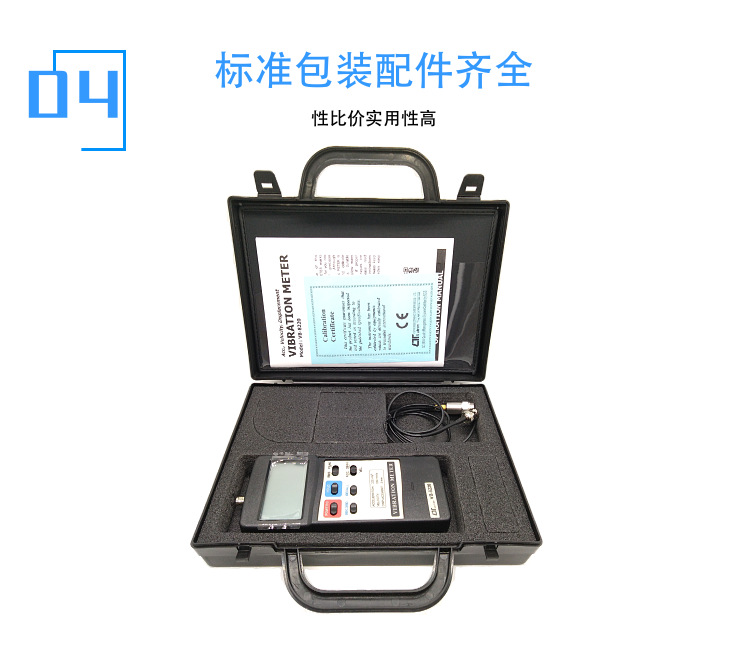

☆附贈硬質儀器盒

☆1G=9.81 m/s²

Product Overview
Achieve Precision and Reliability with a Professional Vibration Meter



The VB-8220 Vibration Meter offers accurate and reliable measurements of acceleration, velocity, and displacement, making it an essential tool for industrial vibration monitoring and maintenance.



Exceptional Features of the VB-8220:



1. Comprehensive Vibration Measurement: Measures acceleration, velocity, and displacement across a wide frequency range of 10 Hz to 1 kHz, meeting ISO 2954 standards.



2. High Sensitivity and Accuracy: Provides high sensitivity and accuracy (±5% + 5d) at key frequencies (160 Hz, 80 Hz) for reliable data collection and analysis.



3. User-Friendly Operation: Features data hold, peak measurement, and memory functions to freeze readings and recall maximum and minimum values. Includes a super large LCD display for easy readability.



4. Durable and Portable Design: Constructed with a heavy-duty and compact housing, and includes a separate vibration sensor probe with a magnetic base for easy operation.



5. Advanced Connectivity: Equipped with RS232 serial output for data transfer and optional data acquisition software for enhanced data management.



Technical Specifications:



– Display:

– 61 mm x 34 mm super large LCD

– Digit Size: 15 mm (0.6″)



– Measurement Functions:

– Velocity, Acceleration, Displacement

– RMS value, Peak value

– Data hold, Max & Min value



– Measurement Range:

– Velocity:

– Range: 0.5 to 199.9 mm/s

– Max Range: 200 mm/s

– Acceleration:

– Range: 0.5 to 199.9 m/s²

– Max Range: 200 m/s²

– Displacement (p-p):

– Range: 0.005 to 1.999 mm

– Max Range: 2 mm
