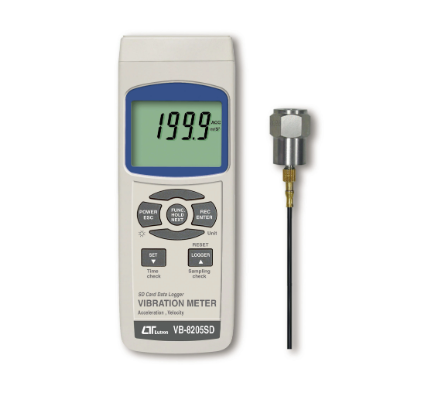

VIBRATION METER
VB-8205SD
Product Overview
Achieve Precision and Comprehensive Data Logging with a Professional Vibration Meter



The VB-8205SD Vibration Meter provides accurate and reliable measurements of acceleration, velocity, and displacement, with real-time data logging capabilities, making it an essential tool for various industrial applications.



Exceptional Features of the VB-8205SD:



1. Real-Time Data Logger: Saves measuring data along with time information (year, month, date, hour, minute, second) into the SD memory card, enabling easy download to Excel for further data analysis without extra software.



2. Multi-Function Measurement: Supports measurements for acceleration, velocity, and displacement, providing comprehensive vibration analysis for industrial machinery.



3. High Accuracy and Resolution: Features high accuracy (±5% + 5d) and high resolution (up to 0.01 for velocity and acceleration), ensuring precise and repeatable measurements.



4. Wide Frequency Range: Covers a frequency range from 10 Hz to 1 kHz, meeting ISO 2954 standards, suitable for a variety of machinery and equipment.



5. User-Friendly Design: Equipped with a large LCD display with green backlight for easy reading, and user-friendly controls including data hold, peak hold, and max hold functions.



6. Advanced Connectivity: Includes RS232/USB computer interface for data output, enhancing data management and integration with other systems.



Technical Specifications:



– Display:

– Type: Large LCD with green backlight (ON/OFF)

– Size: 52 mm x 38 mm



– Measurement Functions:

– Acceleration:

– Range: 0.5 to 199.9 m/s², 0.05 to 20.39 g, 2 to 656 ft/s²

– Resolution: 0.1 m/s², 0.01 g, 1 ft/s²

– Accuracy: ±(5% + 5d) @ 160 Hz, 80 Hz, 23 ± 5℃

– Calibration Point: 50 m/s² (160 Hz)

– Velocity:

– Range: 0.5 to 199.9 mm/s, 0.05 to 19.99 cm/s, 0.02 to 7.87 inch/s

– Resolution: 0.1 mm/s, 0.01 cm/s, 0.01 inch/s

– Accuracy: ±(5% + 5d) @ 160 Hz, 80 Hz, 23 ± 5℃

– Calibration Point: 50 mm/s (160 Hz)

– Displacement:

– Range: 1.999 mm, 0.078 inch

– Resolution: 0.001 mm, 0.001 inch

– Accuracy: ±(5% + 5d) @ 160 Hz, 80 Hz, 23 ± 5℃

– Calibration Point: 0.141 mm (160 Hz)

– Frequency Range: 10 Hz to 1 kHz

– Sensitivity: Meets ISO 2954 standards



– Functions:

– RMS, Peak, Max Hold measurements

– Data hold to freeze the desired reading

– Memory function to record maximum and minimum readings with recall
