SD card real time data recorder

4 channels

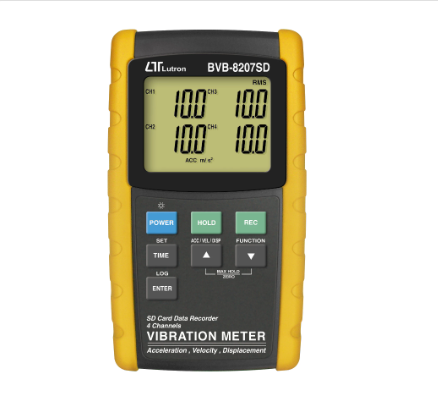

BVB-8207SD 記憶式四通道振動計
BVB-8207SD VIBRATION METER
SD Card
real time data recorder
4 channels

☆報價包含加速規感測器*1
可另加選購 標準型加速規*3
可另加選購 尖頭把手型測試專用加速規

1.測量範圍：
速度VEL：0.5-199.9mm/s
加速度ACC：0.5~199.9m/s^2
位移DSP：0.005：0.5~1.999mm
2.四通道，四視窗同時測量顯示及記錄
3.頻率範圍：10Hz~1KHz
4.精確度：±(5%+5D)讀值
@ 160Hz,80Hz,23±5℃
校正點：50m/S^2(160 Hz)
5.可記錄最大值、最小值及讀值鎖定
6.主機尺寸：225×125×64mm
7.加速規尺寸：
直徑16mmx高37mm
線長1.2M

☆內建SD卡紀錄器功能，同時紀錄時間/日期
自動取樣時間可設定1-3600秒
可設定手動紀錄
☆Excel記錄繪圖沒煩惱：

☆RS-232/USB電腦介面(選購)

Technical Specifications:

– Display:

– Size: 82 mm x 61 mm large LCD with green backlight (ON/OFF)



– Measurement Functions:

– Acceleration (RMS, Peak, Max Hold):

– Range: 0.5 to 199.9 m/s²

– Resolution: 0.1 m/s²

– Accuracy: ±(5% reading + 5d) @ 160 Hz, 80 Hz, 23 ± 5℃

– Velocity (RMS, Peak, Max Hold):

– Range: 0.5 to 199.9 mm/s

– Resolution: 0.1 mm/s

– Accuracy: ±(5% reading + 5d) @ 160 Hz, 80 Hz, 23 ± 5℃

– Displacement (p-p, Max Hold p-p):

– Range: 0.005 to 1.999 mm

– Resolution: 0.001 mm

– Accuracy: ±(5% reading + 5d) @ 160 Hz, 80 Hz, 23 ± 5℃



– Frequency Range: 10 Hz to 1 kHz



– Data Functions:

– Data Hold: Freezes the desired reading

– Peak Hold: Measures and updates the peak value

– Max Hold: Measures and updates the max peak value

– Memory: Records maximum and minimum values



– Datalogger:

– Automatic: 1 second to 3600 seconds

– Manual: Push the data logger button once to save data one time, with position setting (1 to 99)

– SD Card Capacity: 1 GB to 16 GB
