4-20 mA Controller/Alarm/Indicator – Model: CT-2012 控制顯示器 或 控制/警報/顯示表頭

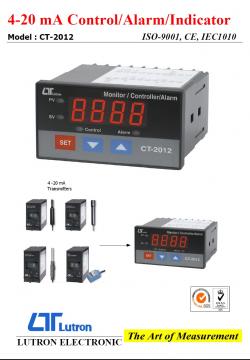

4-20 mA Controller/Alarm/Indicator

控制顯示器 或 控制/警報/顯示表頭

Model : CT-2012

* Input : 4-20 mA DC, linear.

* User can default the desired display value between -1999 to 9999

　(decimal point can be selected to DP1, DP2, DP3) and all the preset

　data will be saved into the memory circuit permanently.

* When CT-2012 cooperate LUTRON’s 4 to 20 mA transmitters, whole

　system will become the high performance Controller/Alarm/Indicator

　for following measuring functions : Humidity, Light, pH, Dissolved

　Oxygen, Conductivity, Vibration, Pressure, Sound, Temperature, RPM,

　Hz, Load cell (Weight, Force), Potential (Angle, Level). ACV, ACA, DCV,

　DCA, WATT….

* Control output: 2 points (COM, NO).

* Alarm output: 2 points (COM, NO).

* DC 24V power supply output.

* RS232/USB computer interface.

* Power : 90 ACV – 264 ACV, 50/60 Hz.

* DIN size : 96 x 48 mm. Depth : 107 mm.
