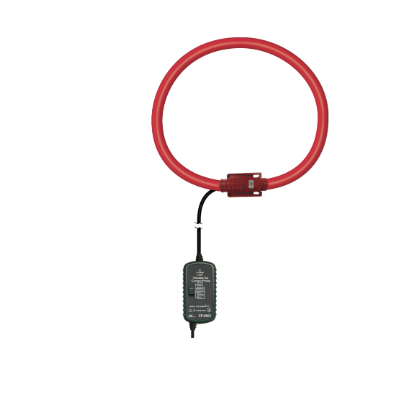

6,000A FLEXIBLE CURRENT PROBE – Model: CP-6001 (6000 A 電流鉗表)

原廠產品詳情網址，歡迎瀏覽：

https://www.lutron.com.tw/products/445/6-000a-flexible-current-probe

60 A/600 A/6000 A, 3 ACV at full scale, probe length 900 mm

CP-6001 an cooperate any kinds multimeters ( ACmV meters )

6,000A FLEXIBLE CURRENT PROBE

(6000 A 電流鉗表)  可協作任何種類萬用錶 ( ACmV meters )

(Optional : 三相電力分析儀 – DW-6093 , DW-6095 )

Model : CP-6001

Technical Specifications:

– Measurement Ranges:

– Autorange: 60 A, 600 A, 6000 A

– Accuracy: ± 1% of range value

– Output Sensitivity: 50 mV/A, 5 mV/A, 0.5 mV/A

– Output Voltage: 3 ACV (60 A, 600 A, 6000 A)

– Flexible Probe Length: 900 mm (35.4 inches)

– Flexible Probe Diameter: 14.5 mm

– Output Cable Length: 3.3 meters (10.8 feet)

– Power Supply: DC 1.5V battery (UM-3/AA x 2) or optional AC to DC 9V adapter, or from the meter (DW-6093, DW-6095) via Power interface cable (PWCB-06)

– Operating Frequency: 45 to 400 Hz

– Phase Error: < ± 1.5° (50/60 Hz)

– Linearity: ± 0.2% of reading value from 10% to 100% of range value

– Conductor Position Sensitivity: ± 2% of range value

– External Field Influence: ± 1.5% of range value max

– Minimum Load: 100 K ohm for specified accuracy

– Enclosure Material: UL 94-V0 rated

– Safety Standard: IEC 1010, Categories III 600V

– Power Consumption: Approx. DC 9 mA

– Operating Temperature: 0℃ to 50℃ (32℉ to 122℉)

– Humidity: Less than 80% RH

– Dimensions: Main circuit unit: 105 x 56.5 x 33 mm (4.1 x 2.2 x 1.3 inches)

– Weight: 523 g (1.2 lb)
