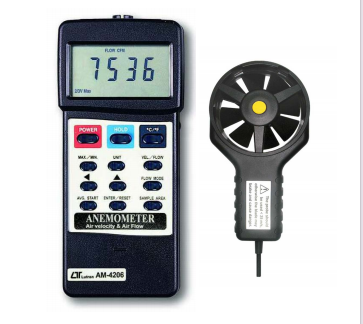

AM-4206 風速/風量/溫度計
AM-4206 ANEMOMETER
Air flow/Air Velocity/CMM/CFM

‧檢查維修空調系統
‧測量空氣流速、風速、溫度

☆底磨擦滾珠軸承設計：
允許自由移動風翼，高/低速度運轉順暢
☆超大液晶顯示器，雙視窗顯示
☆熱電偶感測溫度，測量速度快且時間短
☆USB/RS232電腦連線(選購)

1.風速範圍:
0.4~25.0公尺/秒
1.4~90.0公里/小時
0.9~55.9海浬/小時
80~4930英呎/分鐘
1.9~38.8哩/小時
2.風量範圍:
CMM:0~9999m3/min
CFM:0~999900ft3/min
3.溫度範圍: 0℃-50℃(32℉-122℉)
4.精確度:
風速:±(2%+0.2m/s)、溫度:±0.8℃
5.可記錄最大值/最小及讀值鎖定功能
6.RS-232/USB電腦連線(選購)
7.尺寸：180*72*32mm

Technical Specifications:

– Display:

– Type: Large dual function LCD

– Size: 13 mm (0.5″) digits



– Measurement Modes:

– Air Velocity:

– Units: m/s, km/h, ft/min, knots, mile/h

– Range:

– m/s: 0.4 to 25.0 m/s (Resolution: 0.01 m/s, Accuracy: ±(2% + 0.2 m/s))

– km/h: 1.4 to 90.0 km/h (Resolution: 0.1 km/h, Accuracy: ±(2% + 0.8 km/h))

– mile/h: 0.9 to 55.9 mile/h (Resolution: 0.1 mile/h, Accuracy: ±(2% + 0.4 mile/h))

– knots: 0.8 to 48.8 knots (Resolution: 0.1 knots, Accuracy: ±(2% + 0.4 knots))

– ft/min: 80 to 4930 ft/min (Resolution: 1 ft/min, Accuracy: ±(2% + 40 ft/min))



– Air Flow:

– Units: CMM (m³/min), CFM (ft³/min)

– Range:

– CMM: 0 to 999,900 m³/min (Resolution: 0.001 to 100 m³/min, Area: 0.001 to 9,999 m²)

– CFM: 0 to 999,900 ft³/min (Resolution: 0.001 to 100 ft³/min, Area: 0.001 to 9,999 ft²)



– Air Temperature:

– Units: ℃, ℉

– Range:

– 0 to 50℃ (Resolution: 0.1℃, Accuracy: ±0.8℃)

– 32 to 122℉ (Resolution: 0.1℉, Accuracy: ±1.5℉)
