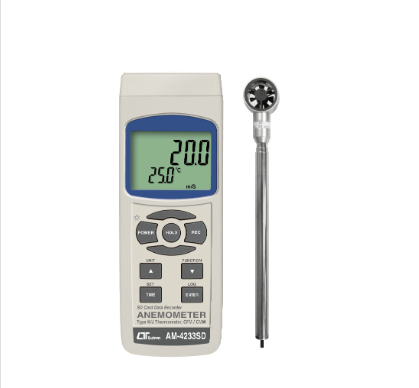

AM-4233SD ANEMOMETER Mini vane
Air flow(CMM,CFM)
SD card
real time data recorder
type K/J Temp.

1.即時數據記錄儲存於SD記憶卡
資料可下載到Excel，做圖表分析
(記憶卡選購)
2.風速範圍：0.4~20.0公尺/秒±5%
風速單位m/s,Ft/min,Km/h,Knot,Mile/h
最高量測溫度：50℃
3.風量範圍：CMM：0~54000m3/min
CFM-每分鐘立方呎,CMM-每分鐘立方米，可切換
4.風溫範圍：0~50.0℃±0.8℃
風溫直接量測
5.溫度Type K：-50.0~1300.0℃±0.4%
適用Type K/Type J熱偶線-溫度探棒(選購)
可加購溫度探棒，測量液體溫度
6.可記錄最大值，最小值及讀值鎖定功能
7.風葉直徑35mm.測棒可延伸長至620mm
8.RS-232/USB連接介面(軟體選購)
9.尺寸：182*73*47.5mm
10.綠色背光銀幕

☆SD卡記錄功能：
可設定紀錄時間：1-3600秒
可記錄日期/時/分/秒
具有單次取樣紀錄功能
☆可加購交流電源，無限延長紀錄時間
☆SD卡紀錄/即時電腦連線(選購)可同時使用

☆測量應用：
環境測試，冷暖空調，空氣輸送機，流量罩
潔淨室，風扇/電機/鼓風機，冷藏箱，噴漆房

Technical Specifications:

– Display:

– Type: Large dual function LCD

– Size: 52 mm x 38 mm

– Backlight: Green backlight (ON/OFF)



– Measurement Modes:

– Air Velocity:

– Units: m/s, km/h, ft/min, knots, mile/h

– Range:

– m/s: 0.4 to 20.0 m/s (Resolution: 0.1 m/s, Accuracy: ±(5% + 0.1 m/s))

– km/h: 1.4 to 72.0 km/h (Resolution: 0.1 km/h, Accuracy: ±(5% + 0.3 km/h))

– mile/h: 0.9 to 44.7 mile/h (Resolution: 0.1 mile/h, Accuracy: ±(5% + 0.2 mile/h))

– knots: 0.8 to 38.8 knots (Resolution: 0.1 knots, Accuracy: ±(5% + 0.2 knots))

– ft/min: 78 to 3940 ft/min (Resolution: 1 ft/min, Accuracy: ±(5% + 20 ft/min))



– Air Flow:

– Units: CMM (m³/min), CFM (ft³/min)

– Range:

– CMM: 0 to 54,000 m³/min (Resolution: 0.001 to 1 m³/min)

– CFM: 0 to 1,907,000 ft³/min (Resolution: 0.001 to 100 ft³/min)

– Measurement Area:

– CMM: 0.001 to 30.000 m²

– CFM: 0.01 to 322.93 ft²



– Air Temperature:

– Units: ℃, ℉

– Range: 0 to 50℃ (Resolution: 0.1℃, Accuracy: ±0.8℃), 32 to 122℉ (Resolution: 0.1℉, Accuracy: ±1.5℉)



– Type K/J Thermocouple Thermometer:

– Type K:

– Range: -50.0 to 1300.0℃ (Resolution: 0.1℃, Accuracy: ±(0.4% + 0.5℃))

– Range: -58.0 to 2372.0℉ (Resolution: 0.1℉, Accuracy: ±(0.4% + 1℉))

– Type J:

– Range: -50.0 to 1200.0℃ (Resolution: 0.1℃, Accuracy: ±(0.4% + 0.5℃))

– Range: -58.0 to 2192.0℉ (Resolution: 0.1℉, Accuracy: ±(0.4% + 1℉))
