原廠產品詳情網址，歡迎瀏覽：
https://www.lutron.com.tw/products/255/dca-aca-clamp-meter

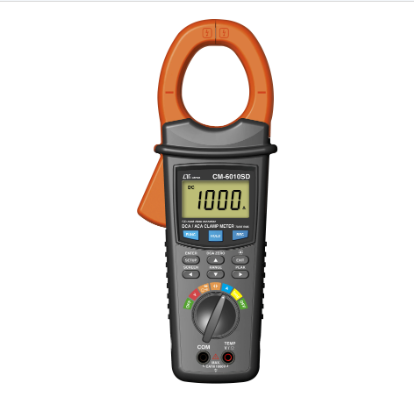

SD card data recorder, true rms DCA/ACA CLAMP METER
交直流電流：0.5A ~ 2000A ±1%
交直流電壓：0V ~ 1000V ±0.8%
電容：0.001nF ~ 600uF ±3%
電阻：0.1 ~ 60M歐姆 ±1% 或 ±1.5%
頻率：0.1Hz ~ 1KHz ±0.5%
溫度：TYPE K : -100.0 ~ 1300.0°C ±1%
讀值鎖定及記錄測量中之最大 / 最小值
Size：280 X 106 X 47mm
鉤部口徑：57mm
Technical Specifications:
– Measurement Ranges:
– ACA: 0 to 2000 ACA, auto range
– DCA: 0 to 2000 DCA, auto range
– ACV: 0 to 1000 ACV, auto range
– DCV: 0 to 1000 DCV, auto range
– Resistance: 0 to 60 Megohm, auto range
– Accuracy:
– DCV:
– 600 mV ± (0.8%+2d)
– 6V to 1000V ± (0.8%+1d)
– Peak to Peak ± (5%+30d)
– ACV:
– 600 mV to 1000v ± (1%+2d)
– Peak to Peak ± (5%+30d)
– DCA/ACA:
– 600 A ± (1%+8d to 12d) , 2000A ± (1%+8d to 12d)
– peak to Peak ± (5%+30d)
– Resistance:
– 600 ohm ± (1%+2d)
– 6K to 60M ± (1.5%+2d)
– Capacitance:
– 6 nF to 600 uF ± (3%+5d)
– Frequency: 40Hz to 999.9Hz ± (0.5%+2d)
– Temperature (Type K):
– -100.0 to 199.9℃ ± (1%+1℃)
– 200 to 1300℃ ± (1%+2℃)
– -148.0 to 391.8℉ ± (1%+1.8℉)
– 392 to 2372℉ ± (1%+3.6℉)
– General Specifications:
– Display: Dot Matrix backlight LCD (128 x 64 pixels)
– A/D Counts: 6000 counts
– Clamp Frequency Response: 40 Hz to 1 KHz
– Overload Protection: DCV/ACV 1000 DCV / 1000 ACV RMS, DCA/ACA 2100 DCA/ACA with clamp probe
– Power Supply: DC 1.5V (UM-3/AA) x 2 PCs or DC 9V adapter
– Power Consumption: 34 mA DC
– Dimensions: 280 x 106 x 47 mm (11.0 x 4.2 x 1.9 inches)
– Weight: Including battery 414 g (0.91 lb)
– Operating Temperature: 0 to 50℃ (32 to 122℉)
– Operating Humidity: Less than 80% RH
