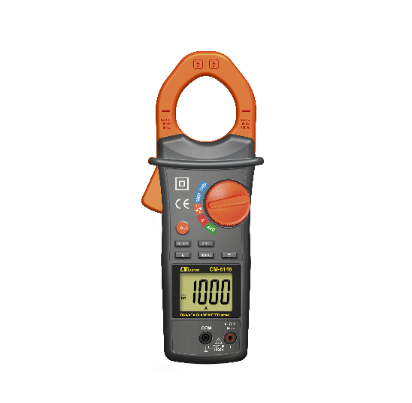

DCA/ACA CLAMP METER, Smart, 1,000 A, economical – Model: CM-6146智能型交直流鉤錶

Technical Specifications:

– Measurement Ranges:

– DC Voltage:

– Range: 600 mV, 6 V, 60 V, 600 V, 1000 V

– Resolution: 0.1 mV to 1 V

– Accuracy: ± (0.8% + 2 d) to ± (0.8% + 1 d)

– AC Voltage:

– Range: 6 V, 60 V, 600 V, 1000 V

– Resolution: 0.001 V to 1 V

– Accuracy: ± (1% + 2 d)

– DC Current:

– Range: 600 A, 1000 A

– Resolution: 0.1 A to 1 A

– Accuracy: ± (1.5% + 15 d) to ± (2% + 8 d)

– AC Current:

– Range: 600 A, 1000 A

– Resolution: 0.1 A to 1 A

– Accuracy: ± (1.5% + 15 d) to ± (2% + 8 d)

– Resistance:

– Range: 600 ohm to 60 M ohm

– Resolution: 0.1 ohm to 1 M ohm

– Accuracy: ± (1% + 2 d) to ± (1.5% + 2 d)

– Capacitance:

– Range: 6 nF to 600 uF

– Resolution: 0.001 nF to 0.1 uF

– Accuracy: ± (3% + 5 d)

– Frequency:

– Range: 40 Hz to 1 kHz

– Resolution: 0.001 kHz

– Accuracy: ± (0.5% + 2 d)

– Diode Test: Short/non-conductance, good/defect test

– Continuity Beeper: Built-in
