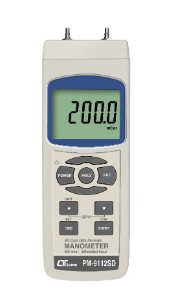

MANOMETER 200 mbar – Model: PM-9112SD 壓力/差壓紀錄器/差壓計

原廠產品詳情網址，歡迎瀏覽：

https://www.lutron.com.tw/en-us/241/PM-9112SD

PM-9112SD 壓力/差壓紀錄器/差壓計

PM-9112SD MANOMETER 200 mbar SD card real time recorder

1.雙氣源差壓輸入
2.0~200毫巴(mbar)
3.雙壓力感應器，可測量壓力及差壓
4.精度±2%(滿刻度)
5.10種測量單位選擇
  mbar,psi,Kg/cm2,mm Hg,inch Hg
  meter H2O,inch H2O,Atmosphere
  hpa,kpa
6.可記錄最大值，最小值及讀值鎖定功能
7.尺寸：190*68*45mm
8.快速歸零鍵
9.內建壓電傳感器

☆用途：
  工業，實驗室，采暖，通風，醫療醫院
  用於空氣或不腐蝕性且不電離氣體
  僅用於乾燥，非腐蝕性和非離子型氣體和氣體
  禁止液體

Technical Specifications:

– Display:

  – Type: LCD with green backlight (ON/OFF)

  – Size: 51 mm x 37 mm

– Measurement Functions:

  – Pressure Units:

    – mbar: ±200 mbar, resolution 0.1 mbar

    – psi: ±2.9 psi, resolution 0.001 psi

    – kg/cm²: ±0.204 kg/cm², resolution 0.001 kg/cm²

    – mm Hg: ±150 mm Hg, resolution 0.1 mm Hg

    – inch Hg: ±5.905 inch Hg, resolution 0.002 inch Hg

    – meter H₂O: ±2.04 meter H₂O, resolution 0.001 meter H₂O

    – hPa: ±200 hPa, resolution 0.1 hPa

    – kPa: ±20 kPa, resolution 0.01 kPa

    – inch H₂O: ±80.2 inch H₂O, resolution 0.05 inch H₂O

    – Atmosphere: ±0.197 Atmosphere, resolution 0.001 Atmosphere

– Accuracy: ±2% F.S.

– Sampling Time: Auto: 1 sec to 8 hours 59 minutes 59 sec; Manual: Save data on button press

– SD Card Capacity: 1 GB to 16 GB

– Power Supply:

  – DC 1.5V batteries (UM3, AA) x 6 PCs

  – DC 9V adapter input (optional)

  – Power Consumption:

    – Normal operation (without SD card save data and LCD backlight OFF): Approx. DC 7 mA

    – With SD card save data and LCD backlight OFF: Approx. DC 25 mA

– Operating Environment:

  – Temperature: 0 to 50℃

  – Humidity: Less than 85% RH

– Dimensions:

  – 190 x 68 x 45 mm (7.5 x 2.7 x 1.8 inches)

– Weight: 265 g (0.59 lb)
