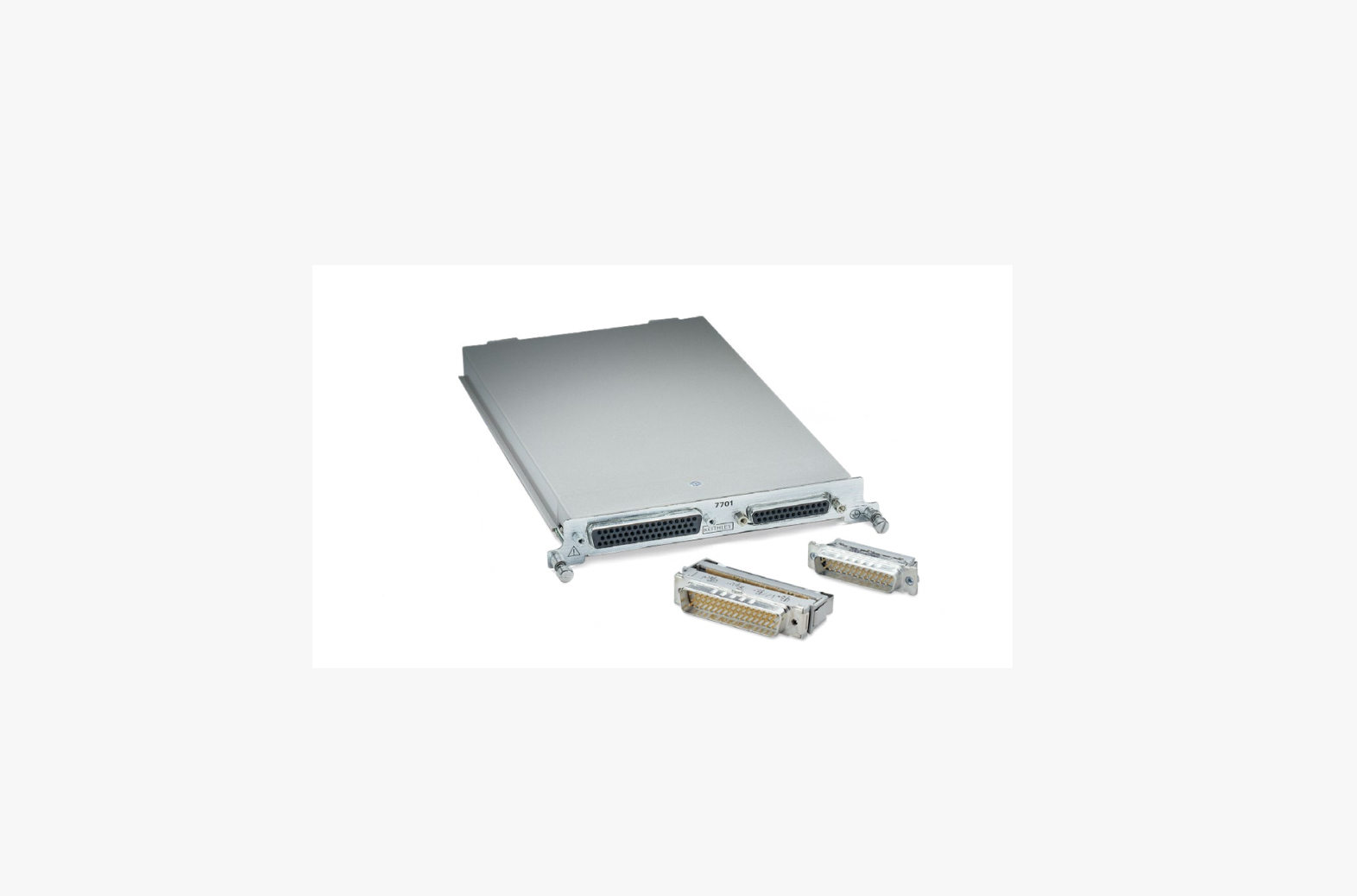

Multimeter Model: 7701

 Multimeter





萬用錶

Model : 7701





* FEATURES



• Configurable for 32 channels of differential measurements, with up to 16 channels



of 4-pole measurements.



• Configurable for 32 channels of common-side 4-wire ohms.



• Configurable as two independent banks of multiplexers.



• Two female D-shell connectors are standard for secure hook-up and



quick teardown.



• 150V,1Acapacity for voltage channels; 60W, 125VA.



• Two mating IDC connectors for ribbon cable are supplied.



• Relay closures stored in on-board memory.



• Screw terminal jumpers allow user-configurable DMM connections.

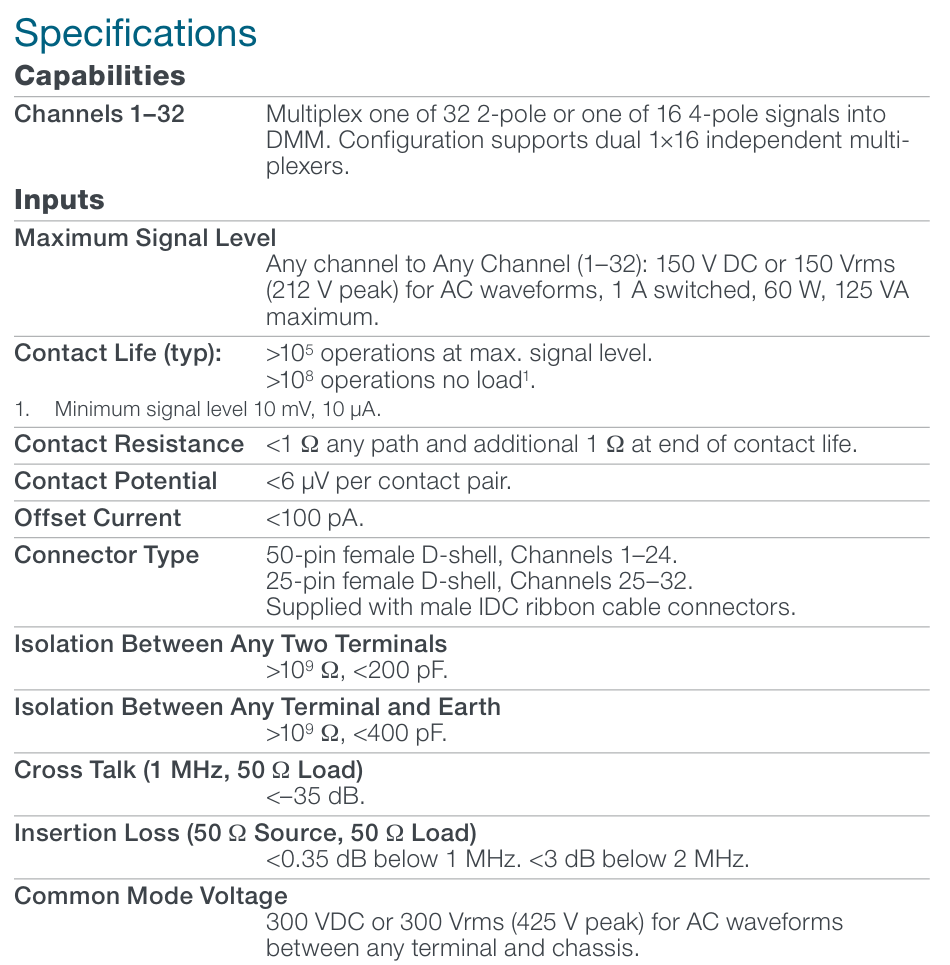

* GENERAL



32 CHANNELS: 32 channels of 2-pole relay input. All channels configurable to 4-pole.



RELAY TYPE: Latching electromechanical.



ACTUATION TIME: <3ms.



FIRMWARE: Specified for Model 2700 rev. B03, Model 2701 rev. A01, and Model 2750



rev. A01 or higher.



DMM CONNECTIONS: Screw terminals provide internal DMM connections to channels



34 and 35 and connections to external wiring access.







* CAPABILITIES



CHANNELS 1–32: Multiplex one of 32 2-pole or one of 16 4-pole signals into DMM.



Configuration supports dual 1×16 independent multiplexers.







* INPUTS



MAXIMUM SIGNAL LEVEL: Any channel to Any Channel (1–32): 150V DC or



150Vrms (212V peak) for AC waveforms, 1A switched, 60W, 125VA maximum.



SAFETY: Conforms to European Union Directive 73/23/EEC EN61010-1, CAT I.



CONTACT LIFE (typ): >105 operations at max signal level.



>108 operations cold switching.



CONTACT RESISTANCE: <1Ω any path and additional 1Ω at end of contact life.



CONTACT POTENTIAL: <6μV per contact pair.



OFFSET CURRENT: <100pA.



CONNECTOR TYPE: 50-pin female D-shell, Channels 1–24.



25-pin female D-shell, Channels 25–32.



Supplied with male IDC ribbon cable connectors.



ISOLATION BETWEEN ANY TWO TERMINALS: >109Ω, <200pF.



ISOLATION BETWEEN ANY TERMINAL AND EARTH: >109Ω, <400pF.



CROSS TALK (1MHz, 50Ω Load): <–35dB.



INSERTION LOSS (50Ω Source, 50Ω Load): <0.35dB below 1MHz.



<3dB below 2MHz.



COMMON MODE VOLTAGE: 300VDC or 300Vrms (425V peak) for AC waveforms



between any terminal and chassis.







* ENVIRONMENTAL



OPERATING ENVIRONMENT: Specified for 0°C to 50°C.



Specified to 50% R.H. at 35°C.



STORAGE ENVIRONMENT: –25°C to 65°C.



WEIGHT: <0.52kg (1.16 lb).



ACCESSORIES AVAILABLE:



Model 7789 50/25 Pin Male D-Shell Solder Cup Connectors



Model 7790 50/50/25 Pin Female/Male D-Shell IDC Connectors



Model 7705-MTC-2 50 Pin Male to Female DSUB Cable, 2m (6.6 ft).



Model 7707-MTC-2 25 Pin Male to Female DSUB Cable, 2m (6.6 ft).
