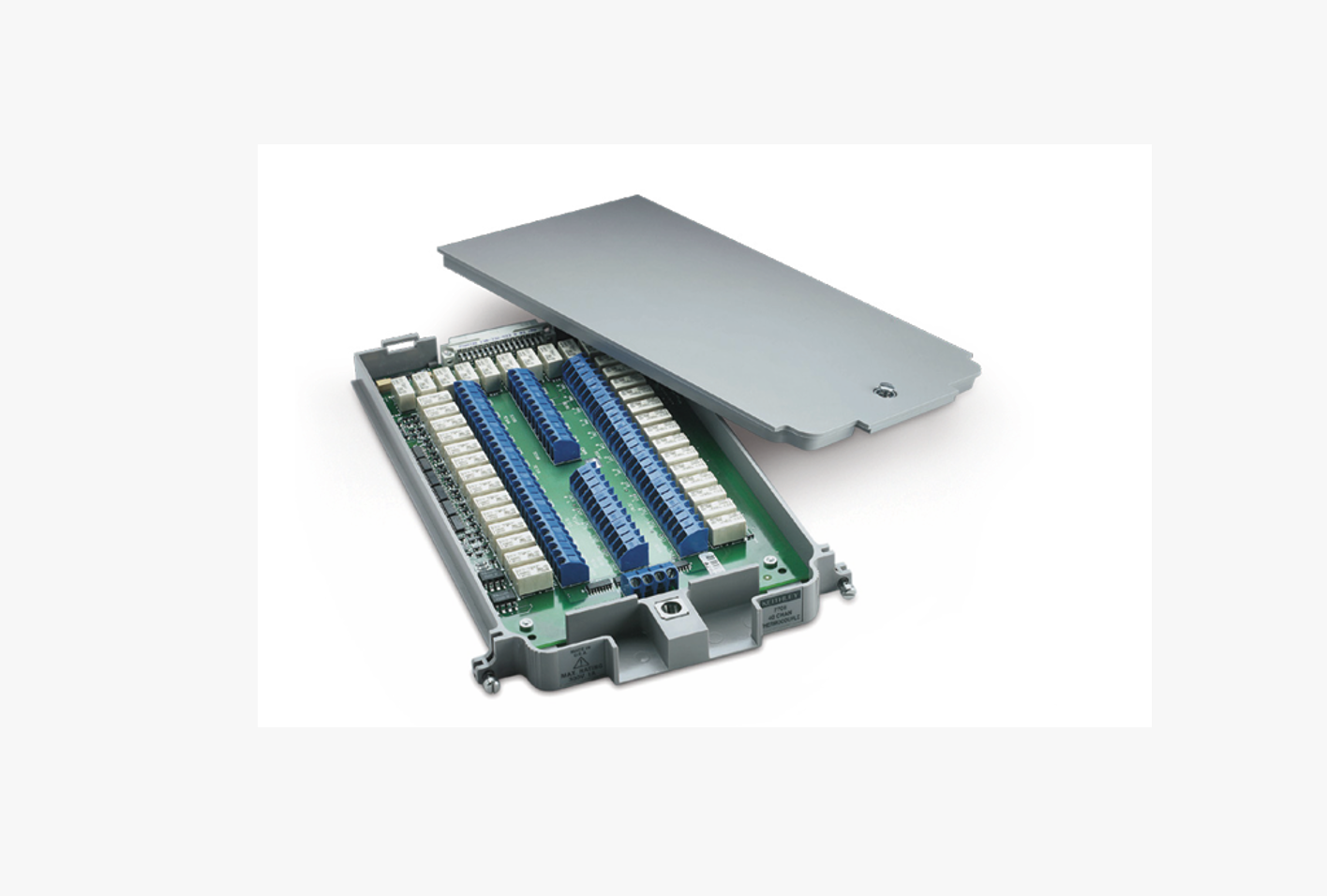

Multimeter Model: 7708

Multimeter





萬用錶

Model : 7708





* FEATURES



• 40 differential channels for general-purpose measurements.



• 2- or 4-wire measurements.



• Oversize screw terminal connection blocks are standard for easier connection.



• 300V,1Acapacity for voltage channels; 60W, 125VA.



• Configurable as two independent banks of multiplexers.



• Built-in CJC sensors automatically linearize thermocouples.



• Relay closures stored in on-board memory.







* GENERAL



40 CHANNELS: 40 channels of 2-pole relay input. All channels configurable to 4-pole.



RELAY TYPE: Latching electromechanical.



ACTUATION TIME: <3ms.



FIRMWARE: Specified for Model 2700 rev. B02, 2701 rev. A01, and 2750 rev. A01



or higher.

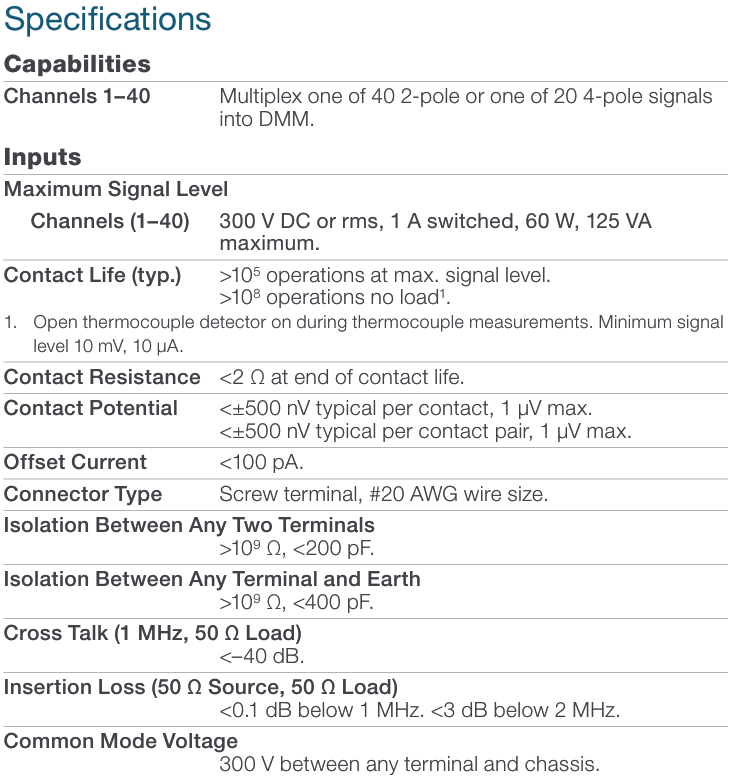

* CAPABILITIES



CHANNELS 1–40: Multiplex one of 40 2-pole or one of 20 4-pole signals into DMM.







* INPUTS



MAXIMUM SIGNAL LEVEL:



Channels (1–40): 300V DC or rms, 1A switched, 60W, 125VA maximum.



CONTACT LIFE (typ): >105 operations at max. signal level.



>108 operations cold switching.



CONTACT RESISTANCE: <1Ω at end of contact life.



CONTACT POTENTIAL: <±500nV typical per contact, 1μV max.



<±500nV typical per contact pair, 1μV max.



OFFSET CURRENT: <100pA.



CONNECTOR TYPE: Screw terminal, #20 AWG wire size.



ISOLATION BETWEEN ANY TWO TERMINALS: >1010Ω, <100pF.



ISOLATION BETWEEN ANY TERMINAL AND EARTH: >109Ω, <200pF.



CROSS TALK (10MHz, 50Ω Load): <–40dB.



INSERTION LOSS (50Ω Source, 50Ω Load): <0.1dB below 1MHz.



<3dB below 2MHz.



COMMON MODE VOLTAGE: 300V between any terminal and chassis.



TEMPERATURE ACCURACY USING INTERNAL CJC: 1.0°C (see mainframe specification



for details).







* ENVIRONMENTAL



OPERATING ENVIRONMENT: Specified for 0°C to 50°C.



Specified to 80% R.H. at 35°C.



STORAGE ENVIRONMENT: –25°C to 65°C.



WEIGHT: 0.52kg (1.16 lb).



ACCESSORIES AVAILABLE:



Model 7401 Type K Thermocouple Wire, 30.5m (100 ft).
