紫外光度计，袖珍紫外線光強度計

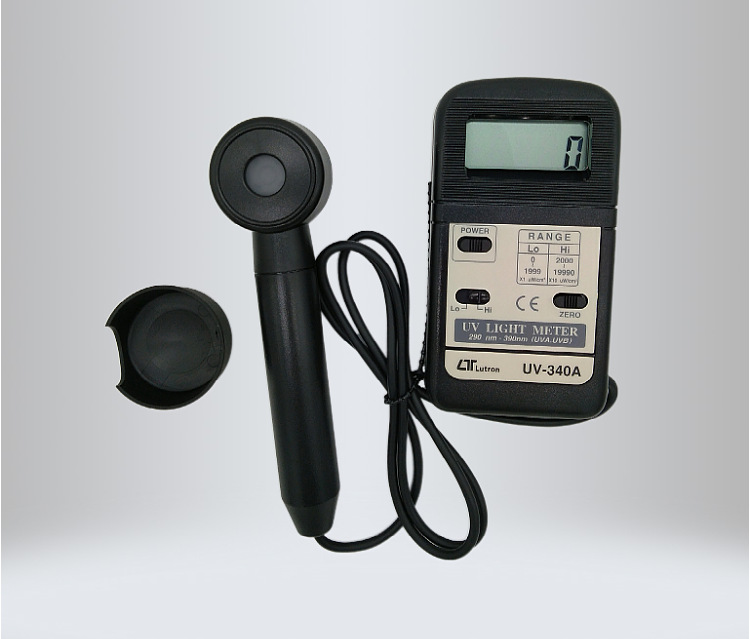

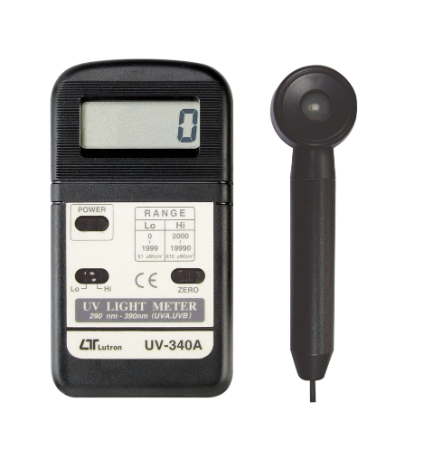

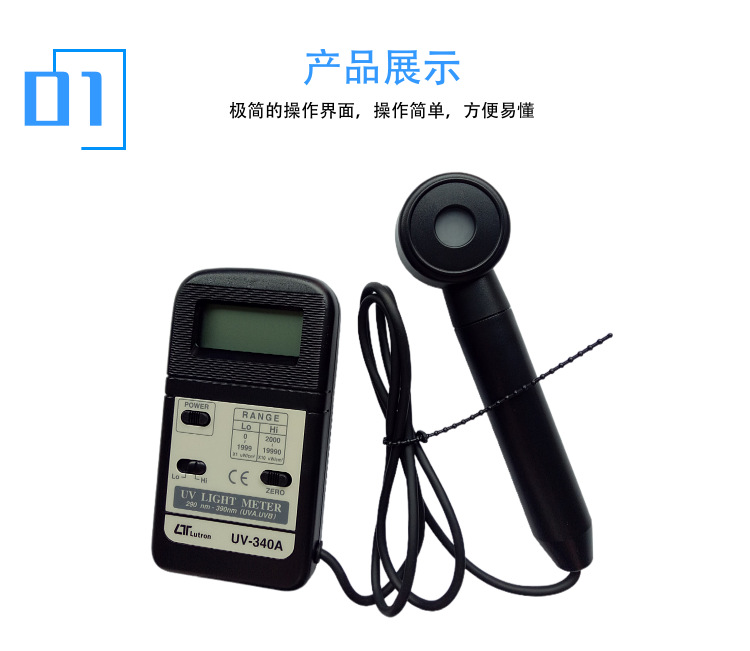

UV-340 UV紫外線光強度計
UV-340 UVA & UVB measurement,
Spectum:290nm-390nm
UV LIGHT METER

1.UV紫外線波長範圍:
290~390nm(UVA/UVB)
2.UV紫外線強度範圍:
0~1999μW/cm2.
10~19990μW/cm2
3.分離式測棒設計，方便操作測量
4.適用範圍廣泛，陽光監測，紫外線燈具測
量，曝光機測量，實驗室設備及醫療設備
檢測使用等.

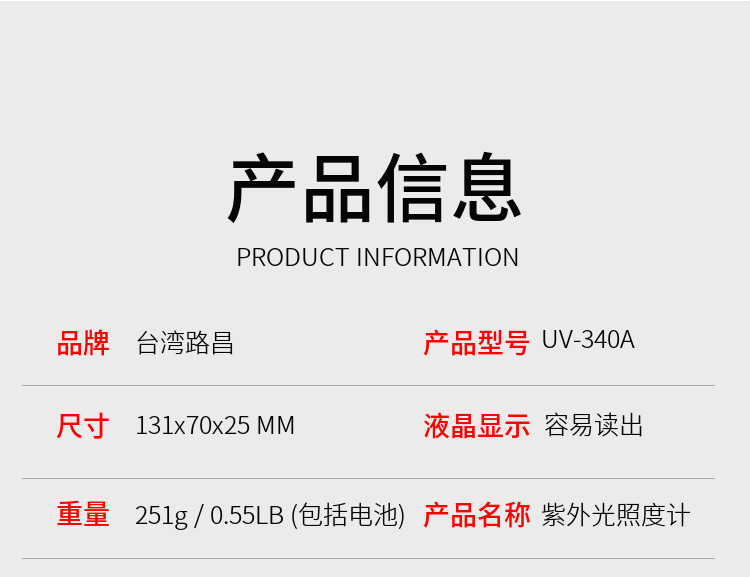

5.Size: 131 × 70 × 25mm

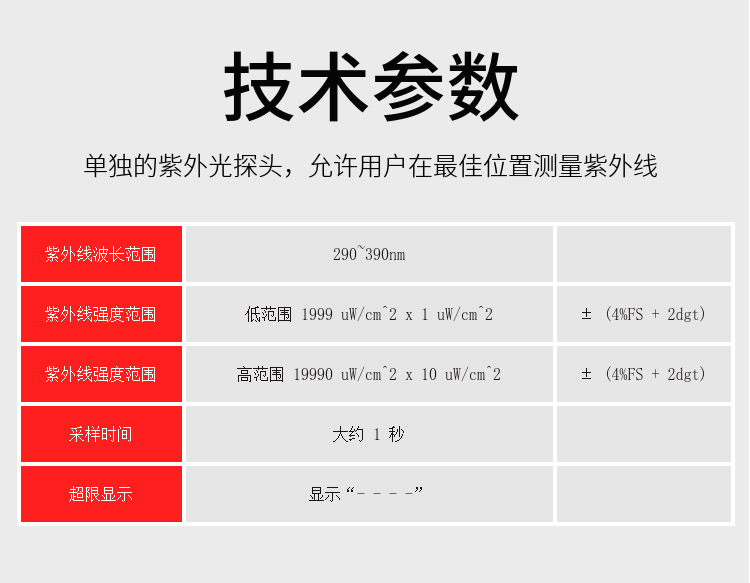

Technical Specifications:



– Display:

– Type: LCD

– Size: 18 mm x 45 mm

– Maximum Indication: 1999



– Measurement Functions:

– Ranges:

– Lo Range: 0 to 1999 µW/cm², resolution 1 µW/cm²

– Hi Range: 0 to 19990 µW/cm², resolution 10 µW/cm²

– UV Sensor Spectrum: Band pass 290 nm to 390 nm

– Accuracy: ± (4% FS + 2 digits) FS (full scale)



– General Specifications:

– Sensor: Exclusive UV photo sensor with cosine correction filter

– Sampling Time: Approx. 1 second

– Over Range Indication: Display shows “1”

– Power Supply: DC 9V battery (006P, MN1604, PP3 or equivalent)

– Power Consumption: Approx. DC 6 mA

– Operating Environment:

– Temperature: 0 to 50℃

– Humidity: Less than 85% RH

– Dimensions:

– Main Instrument: 131 x 70 x 25 mm

– Sensor Probe Head: 45 mm dia x 32 mm

– Sensor Probe Handle: 125 x 24 mm dia

– Weight: 251 g (including battery)
