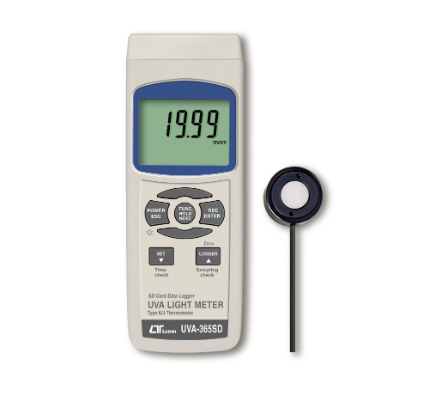

UVA-365SD UVA紫外線光強度紀錄器
UVA-365SD UVA LIGHT METER
SD card
real time recorder
type K/J thermometer

1.即時數據記錄儲存於SD記憶卡
資料可下載到Excel，做圖表分析
(記憶卡選購)
2.紫外線光中心波長：365nm
3.測量範圍：
0~1.999mW/cm2
0~19.99mW/cm2
4.精確度：±4%(滿刻度)+2D
5.溫度Type K：-50.0~1300.0℃±0.4%
可使用Type K/Type J熱偶線
6.可記錄最大值，最小值及讀值鎖定功能
7.主機尺寸：177*68*45mm
感應器尺寸：直徑38mmx25mm
8.歸零鍵功能
9.小型分離式感應器，好定位
10.感應器頻譜圖如目錄

Technical Specifications:

– Display:

– Type: LCD with green backlight (ON/OFF)

– Size: 52 mm x 38 mm



– Measurement Functions:

– UVA Light:

– Range 1: 0 to 1.999 mW/cm², resolution: 0.001 mW/cm²

– Range 2: 0 to 19.99 mW/cm², resolution: 0.01 mW/cm²

– Accuracy: ±(4% + 2 digits)

– UVA Sensor Spectrum: 260 nm to 390 nm

– Exclusive UVA photo sensor with cosine correction filter

– Thermocouple Type K/J:

– Type K: -50.0 to 1300.0℃, -58.0 to 2372.0℉

– Type J: -50.0 to 1200.0℃, -58.0 to 2192.0℉

– Resolution: 0.1℃/℉

– Accuracy: ±(0.4% + 0.5℃) for Type K, ±(0.4% + 0.5℃) for Type J



– Data Logger:

– Automatic: 1 to 3600 seconds

– Manual: Set sampling time to 0 seconds

– SD Card Capacity: 1 GB to 16 GB



– Power Supply:

– DC 1.5V AA (UM3) batteries x 6 PCs or DC 9V adapter (optional)



– Power Consumption:

– Normal operation (without SD card save data and LCD backlight OFF): Approx. DC 6.5 mA

– When SD card saves data and LCD backlight OFF: Approx. DC 30 mA

– Additional approx. DC 16 mA when LCD backlight ON



– Operating Environment:

– Temperature: 0 to 50℃

– Humidity: Less than 85% RH



– Dimensions: 177 x 68 x 45 mm (7.0 x 2.7 x 1.9 inch)

– Weight: 351 g (0.77 lb, without battery)
