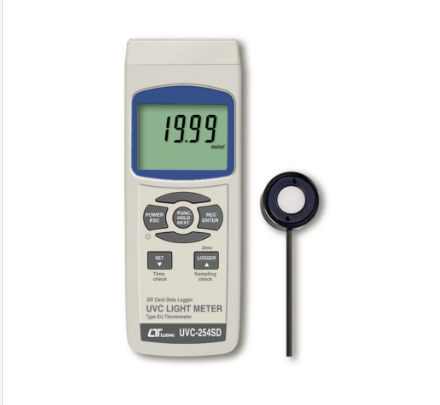

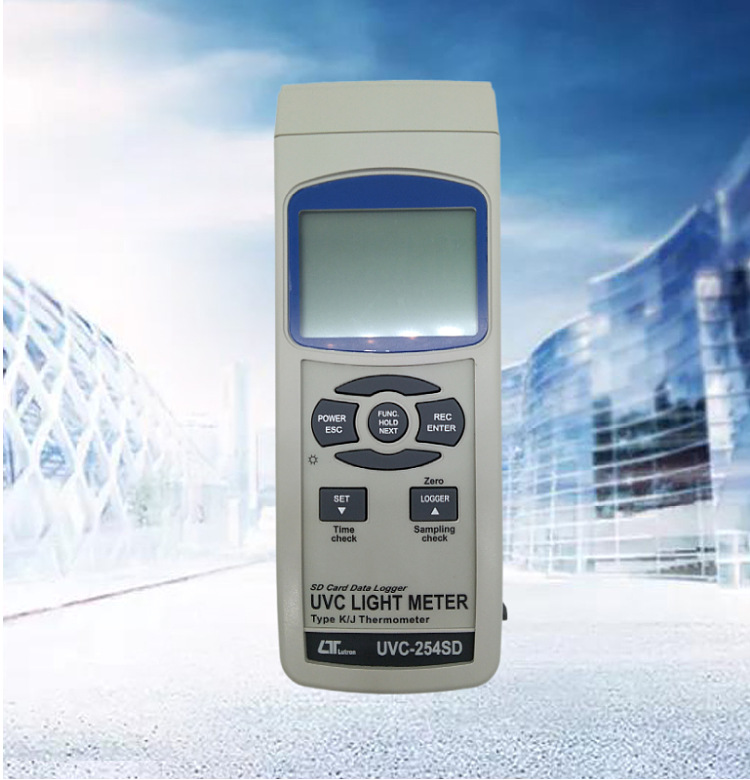

UVC-254SD UVC紫外線光強度紀錄器
UVC-254SD UVC LIGHT METER
SD Card
real time data logger
type K/J thermometer

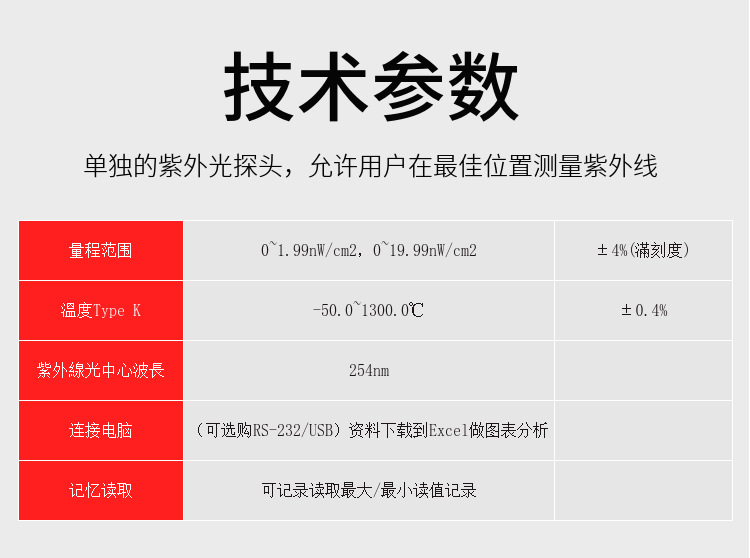

☆UVC-254SD UVC紫外線光強度紀錄器 產品型錄
☆殺菌燈光強度測量專用

1.即時數據記錄儲存於SD記憶卡
資料可下載到Excel，做圖表分析
(記憶卡選購)
2.紫外線光中心波長：254nm

3.測量範圍：
0~1.999mW/cm2
0~19.99mW/cm2
光強度與光源的距離平方成反比
4.精確度：±6%(滿刻度)+2D
5.溫度Type K：-50.0~1300.0℃±0.4%
可使用Type K/Type J熱偶線
6.可記錄最大值，最小值及讀值鎖定功能
7.主機尺寸：177*68*45mm
感應器尺寸：直徑38mmx25mm
8.歸零鍵功能
9.小型分離式感應器，好定位
10.感應器頻譜圖如目錄

Technical Specifications

– Display:

– Type: LCD with green backlight (ON/OFF)

– Size: 52 mm x 38 mm



– Measurement Functions:

– UVC Light:

– Measurement Ranges:

– 2 mW/cm² (Resolution: 0.001 mW/cm²)

– 20 mW/cm² (Resolution: 0.01 mW/cm²)

– Accuracy: ±(4% FS + 2 dgt)

– Sensor Spectrum: 200 nm to 280 nm

– Sensor Structure: Exclusive UVC photo sensor with cosine correction filter



– Type K/J Thermometer:

– Type K:

– Range: -50.0 to 1300.0℃ (Resolution: 0.1℃)

– Accuracy: ±(0.4% + 0.5℃)

– Type J:

– Range: -50.0 to 1200.0℃ (Resolution: 0.1℃)

– Accuracy: ±(0.4% + 0.5℃)



– General Specifications:

– Circuit: Custom one-chip microprocessor LSI circuit

– Power Supply: DC 1.5V batteries (UM3, AA) x 6 PCs, or DC 9V adapter (optional)

– Power Consumption:

– Normal operation (without SD card save data and LCD backlight OFF): Approx. DC 6.5 mA

– When SD card saves data but LCD backlight OFF: Approx. DC 30 mA

– Additional power consumption with LCD backlight ON: Approx. DC 16 mA

– Operating Environment:

– Temperature: 0 to 50℃

– Humidity: Less than 85% RH

– Dimensions:

– Meter: 177 x 68 x 45 mm

– UVC Probe: 38 mm DIA. x 25 mm

– Weight:

– Meter: 351 g

– UVC Probe: 103 g
