VB-8202 振動計
VB-8202 VIBRATION METER
．衝擊瞬間速度、加速度測量與紀錄
．可人工換算G值，1G=9.81 m/s²
．可人工換算衝擊力量F=ma(牛頓第二運動定律)
物理牛頓第二運動定律實驗/驗證必備教學儀器
1.測量範圍:
速度(VEL)0.5~199.9mm/s
加速度(ACC)0.5~199.9m/s²
2.頻率範圍：10Hz～1KHz
3.精確度:±5%
4.讀值鎖定及記錄測量中之最大/最小值
5.RS-232/USB連接介面.(軟體選購)
6.尺寸:180×72×32mm
7.符合ISO 2954標準

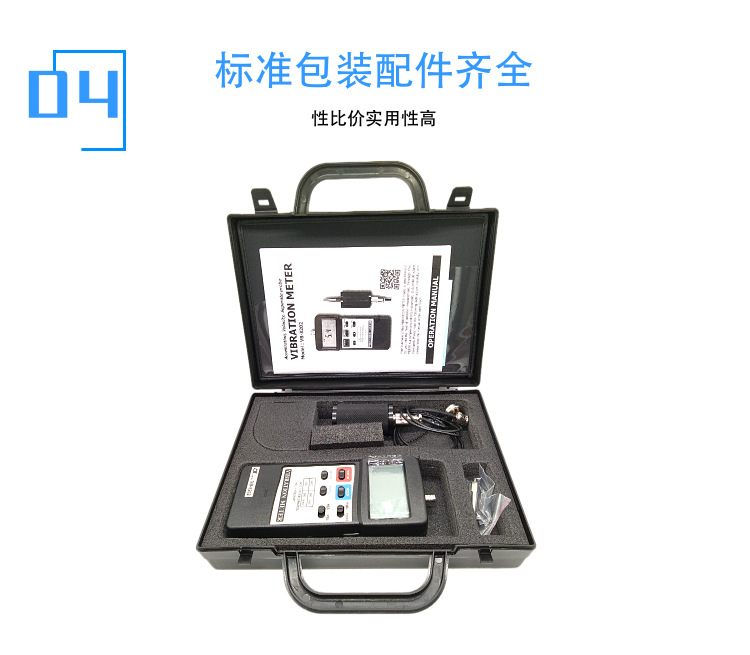

☆手持/固定檢測雙用設計
手持式感測頭，附磁性感測頭
☆附贈硬質儀器盒
☆1G=9.81 m/s²
Technical Specifications:
– Measurement Range and Resolution:
– Velocity:
– Range: 0.5 to 199.9 mm/s
– Accuracy: ±(5% + 2d) at 160 Hz and 80 Hz, 23 ± 5℃
– Acceleration:
– Range: 0.5 to 199.9 m/s²
– Accuracy: ±(5% + 2d) at 160 Hz and 80 Hz, 23 ± 5℃
– Frequency Range: 10 Hz to 1 kHz
– Display:
– Type: Super large LCD
– Size: 61 mm x 34 mm
– Digit Size: 15 mm (0.6 inch)
– Functions:
– RMS and Peak value measurement
– Data hold to freeze the desired reading
– Memory function to record maximum and minimum readings
– Auto power off and manual power off
– Data Output: RS-232 serial output, isolated
