VIBRATION METER  振動測震儀

Acc./Vel./Disp., RS232, Max. hold, Peak value. Data hold VIBRATION METER

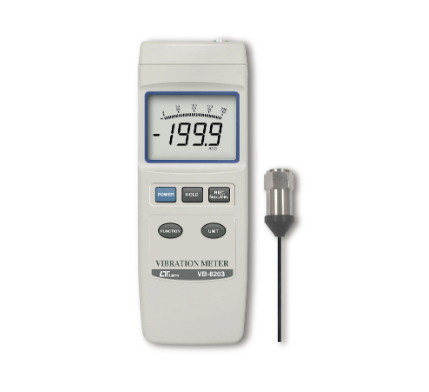

VB-8203
Product Overview
Achieve Precision and Reliability with a Professional Vibration Meter



The VB-8203 Vibration Meter offers accurate and reliable measurements of acceleration, velocity, and displacement, making it an essential tool for industrial vibration monitoring.



Exceptional Features of the VB-8203:



1. Comprehensive Measurement: Measures acceleration, velocity, and displacement with RMS, peak, and max hold values, providing a complete vibration analysis.



2. Wide Frequency Range: Covers a frequency range of 10 Hz to 1 kHz, meeting ISO 2954 sensitivity requirements for industrial applications.



3. Real-Time Data Logging: Features a data logger function with sampling times from 0 seconds (manual) to 3600 seconds (auto), storing up to 500 data points.



4. User-Friendly Interface: Equipped with a large LCD display with bar graph indicator for easy reading, and includes data hold, max/min value recall, and RS232 computer interface for data transfer.



5. Durable and Portable Design: Includes a vibration sensor with magnetic base, housed in a compact and heavy-duty case, with auto power off to save battery life.



Technical Specifications:



– Display:

– Type: LCD, 52 mm x 38 mm, with bar graph indicator

– Digit Size: 16 mm (0.63 inch)

– Measurement Functions:

– Acceleration:

– Range: 0.5 to 199.9 m/s², 0.05 to 20.39 G, 2 to 656 ft/s²

– Resolution: 0.1 m/s², 0.01 G, 1 ft/s²

– Accuracy: ±(5% + 2 d) reading @ 160 Hz, 80 Hz, 23 ± 5℃

– Velocity:

– Range: 0.5 to 199.9 mm/s, 0.05 to 19.99 cm/s, 0.02 to 7.87 inch/s

– Resolution: 0.1 mm/s, 0.01 cm/s, 0.01 inch/s

– Accuracy: ±(5% + 2 d) reading @ 160 Hz, 80 Hz, 23 ± 5℃

– Displacement (p-p):

– Range: 1.999 mm, 0.078 inch

– Resolution: 0.001 mm, 0.001 inch

– Accuracy: ±(5% + 2 d) reading @ 160 Hz, 80 Hz, 23 ± 5℃

– Frequency Range: 10 Hz to 1 kHz

– Data Logging:

– Sampling Time: 0, 1, 2, 10, 30, 60, 600, 1800, 3600 sec

– Data Points: 500 max
