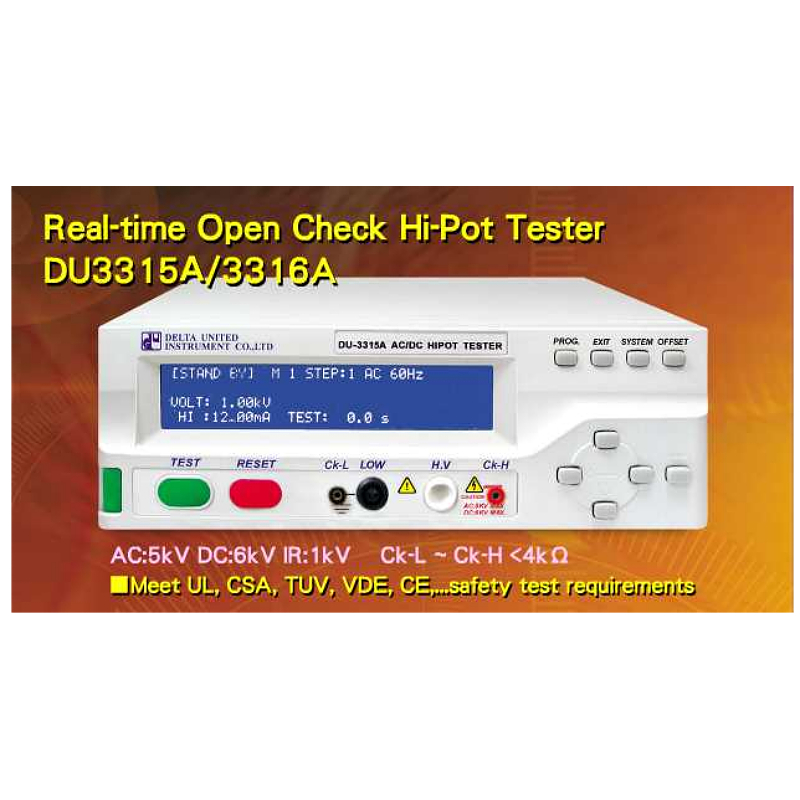

DU-3315A/3316A Real-time Open Check Hi-Pot Tester
耐壓測試儀
| Feature |
 Real-time Open Check of the alarm and signal output of no contact signal3 in 1 tester with AC, DC, IR functions ( IR function is optional for DU3316 only)ARC Detction:DU3315A /DU3316A Standard function 40 x 4 LCD text displayFast cut-off time : 0.4ms5 sets of memory, 3 steps for each memory |
| Specifications | ||
| Model | DU-3315A | DU-3316A |
| Real tame Chack | Ck-L~Ck-H <4kΩ , Can connect to determine the signal and the output signal |
|
| Withstanding Volta | ||
| Output Voltage | AC: 0.10~5000V | AC: 0.10~5000V / DC: 0.10~6000V |
| Load Regulation | 1% + 5V | |
| Voltage Resolution | 10V | |
| Voltage Accuracy | 1.5% + 5V | |
| Cutoff Current | AC: 0.10mA ~ 12.00mA | AC: 0.10mA ~ 12.00mA DC:0.10mA ~ 5.00mA |
| Current Resolution | 0.01mA ~ 12.00(5.00) mA / 10µA | |
| Current Accuracy | 1.5% + 5counts | |
| Output Frequency | 50Hz / 60Hz | |
| Test Time | 0.3 ~ 999.9 sec , continue | |
| Ramp up Time | 0.1 ~ 999.9 sec , off | |
| Wave Form | Sine wave | |
| PASS/FAIL Judgement | ||
| Comparator Mode | Window comparator system | |
| Indication | Display PASS/FAIL and Alarm | |
| ARC Detection | ||
| Setting Mode | Programmable setting | |
| Detection Current | AC: 1.0mA ~ 12.0mA , DC: 1.0mA ~ 5.0mA | |
| Insulation Resist (Option) | ||
| Output Voltage | DC: 100 ~ 1,000V | |
| Voltage Resolution | 10V | |
| Voltage Accuracy | 2% + 5 V | |
| IR Range | 10 ~ 2,000 MΩ | |
| IR Accuracy | ≧5 00V : 3 % + 2 counts, < 500V : 7 % + 2 counts | |
| Other | ||
| Data Hold | Last test data memory before power off | |
| Step | 3 steps for each memory | |
| Key Lock | Execution withstanding voltage test or insulation resistance test. | |
| Memory store | 5 sets | |
| LCD Display | 4 x 40 LCD Display | |
| Remote Control | TEST / RESET remote control | |
| Signal Output | PASS / FAIL / TEST with relay contact | |
| General | ||
| Power Requirement | 115V/230V AC, 50/60Hz | |
| Accessories | HV Test lead wires, Power Cord, Operation Manual, Certificate of Calibration | |
| Dimensions | 270(W) x 90(H) x 380(D) mm | |
| Weight | 6.7 kg | 7.2 kg |
| Order Information | ||||||||||
| DU-3315A | Real-time Open Check Hi-Pot Tester (AC) | |||||||||
| DU-3316A | Real-time Open Check Hi-Pot Tester (AC/DC/IR) | |||||||||
| Standard Fittings | ||||||||||
| Fx33-0101 | HV test lead wires | |||||||||
| Fx33-0102 | HV test lead wires | |||||||||
| Optional Accessories | ||||||||||
| Of33-IR00 | Insulation Resistance Test (Option for DU-3316 only) | |||||||||
| Fx33-0301 | HV test bat | |||||||||
|
||||||||||
