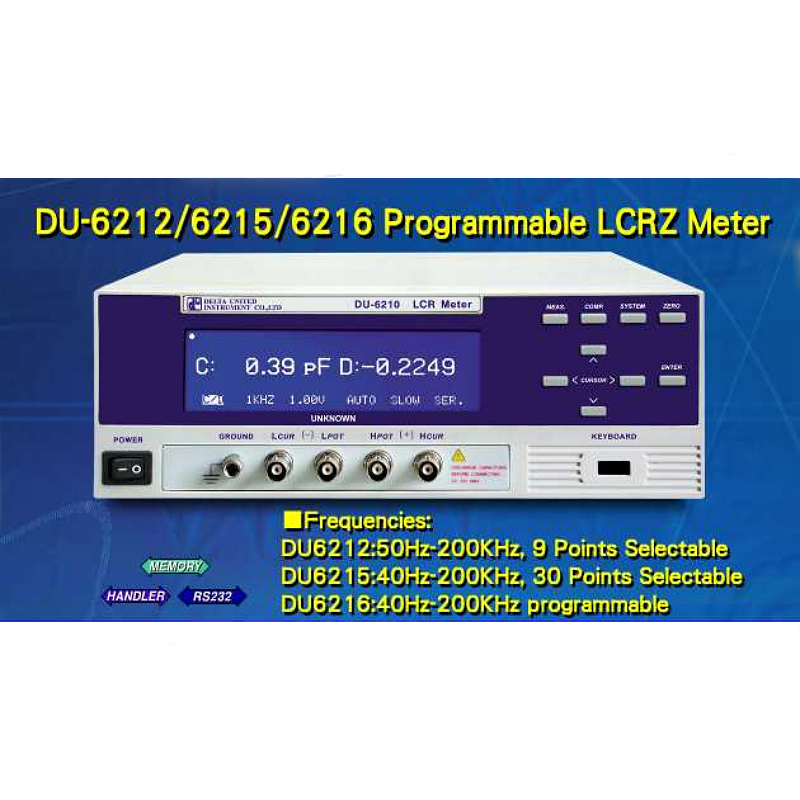

DU-6212/6215/6216 Programmable LCRZ Meter 可编程LCRZ仪表

Category: Delta

Description
Reviews (0)

DU-6212/6215/6216 Programmable LCRZ Meter

可编程LCRZ仪表

Feature

Wide Measuring Range & High accuracy 0.1%

Zeroing Offset Function

Provided HI/LOW limit and BIN Sorting comparator function, to meet your needed.

100 sets of memory, can be saved test parameter and comparator setting, easy to use.

Cover up free, system firmware upgrade can be update via RS-232, easy to maintenance

Easy Test Condition Setting with Auto Parameter Selection & Auto Ranging Function

High speed FADC, max. test speed up to 55 meas./sec, faster your automation equipment

240*64 Graphic LCD display, can be read the reading clearly and easier.

User friendly programmable interface, easy to use

Provided RS-232C and Handler combinatorial interface option, to meet your needed

Specification
Model	DU-6212	DU-6215	DU-6216
Parameter	L.C.R.Z.Q.D.ESR.θ
Test Frequency	50Hz ~ 100KHz 10 points	40Hz ~ 200KHz 30 points	40Hz ~ 200KHz Programming Resolution 1Hz
Test Voltage	1V、0.25V、0.5V、1.00V， (± 5% + 5mV)	0.01V ~ 1.00V Programmable 10mV / steps，(± 5% + 5mV)	0.01V ~ 2.00V Programmable 10mV / steps，(± 5% + 3mV)
Measurement Accuracy	基本精度:±0.1%
Measurement Range	L: 0.001 uH ~ 1999.9H 　　　 Q: 0.01~ 1999.9 C: 0.001 pF ~ 199.99mF 　　 D: 0.0001~ 19.999 R: 0.1 mΩ ~ 19.999 MΩ 　　　 θ: -180°~ +180° Z: 0.1 mΩ~ 199.99 MΩ 　　　 ESR: 0.1 mΩ ~ 19.999 MΩ
Test Speed	SLOW:400ms MED: 130ms FAST: 55ms
Trigger Mode	Internal、External
Functions	Auto parameter, Auto ranging, Zeroing calibration
Comparator	HI/LO Limit: R standard value & Hi-Lo % limits. OK/NG Judgment & indication with alarm. BIN Sorting: 9 Bins for sorting. R standard value & Hi-Lo % limits. OK/NG Judgment & indication with alarm.
Memory	Up to 100 sets of memory
Interface	RS-232 & Handler Two interface features combined together
	Option	Option	Standard
Backup status	Measurement status : Measure range, Parameter, Frequency, Circuit (Parallel / Series) 　　　　　　　　　　　　　　　　Voltage, Comparator setting
Calibration	Software and adjustments are made through the front panel. Automatic Calibration Alert function to signal operator when re-calibration is due.
Power	115V/230 V ± 10%, 50/60 Hz
Dimensions	270(W) x 110(H) x 310(D) mm
Weight	Approx 4.0 kg
Environment	0-40℃, 20-75%RH
