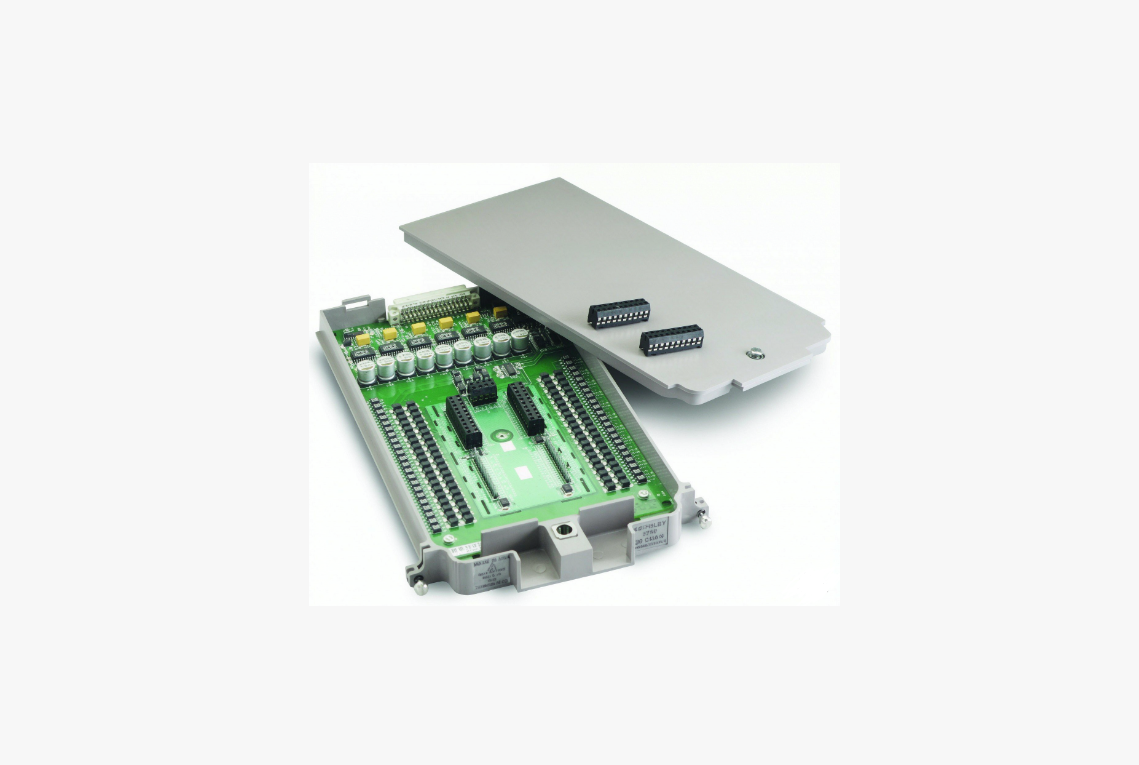

Multimeter Model: 7710

Multimeter





萬用錶

Model : 7710





* FEATURES



• Solid-state relays for long life and low maintenance (100 times longer life than



mechanical relays)



• Higher scanning speeds of up to 500 channels per second



• Automatic CJC with no extra accessories required for thermocouple measurements



• Removable screw terminals offer simple, quick connections



• 20 channels for general purpose measurements



• Configurable as two independent banks of multiplexers







* GENERAL



CHANNELS: 20 channels of 2-pole relay input. All channels configurable to 4-pole.



RELAY TYPE: Solid State Opto-Coupled FET.



ACTUATION TIME: <0.5ms (100mA load).



FIRMWARE: Specified for Model 2700 Rev. B05, Model 2750 Rev. A04, and Model 2701



Rev. A01.

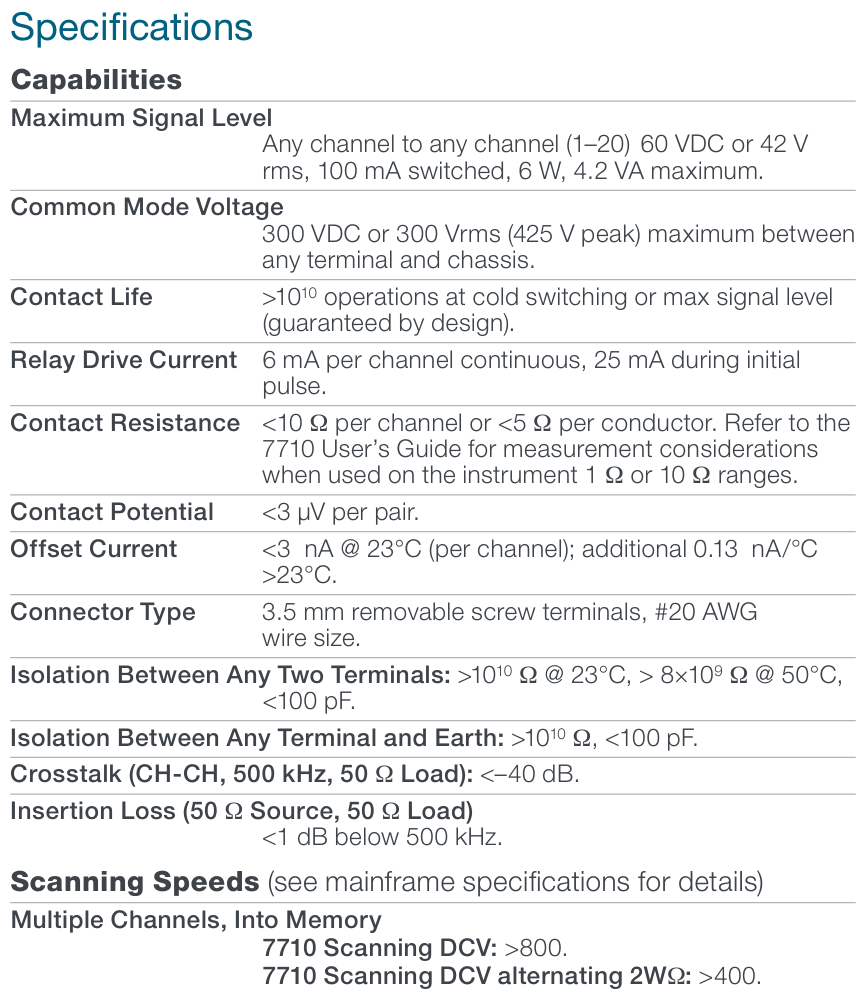

* CAPABILITIES



CHANNELS 1–20: Multiplex one of 20 2-pole or one of 10 4-pole signals into DMM.







* INPUTS



MAXIMUM SIGNAL LEVEL: Any channel to any channel (1–20): 60VDC or 42V rms,



100mA switched, 6W, 4.2VA maximum.



COMMON MODE VOLTAGE: 300VDC or 300Vrms (425V peak) maximum between



any terminal and chassis.



RELAY LIFE (TYP): >105 operational hours max. signal level or 1010 operations



(guaranteed by design).



RELAY DRIVE CURRENT: 6mA per channel continuous, 25mA during initial pulse.



CHANNEL RESISTANCE (per conductor): <5Ω.



CONTACT POTENTIAL: <1μV per pair.



OFFSET CURRENT: <3nA @ 23°C (per channel); additional 0.13nA/°C >23°C.



CONNECTOR TYPE: 3.5mm removable screw terminals, #20 AWG wire size.



ISOLATION BETWEEN ANY TWO TERMINALS: >109Ω, <100pF.



ISOLATION BETWEEN ANY TERMINAL AND EARTH: >109Ω, <100pF.



CROSSTALK (CH-CH, 300kHz, 50Ω Load) : <–40dB.



INSERTION LOSS (50Ω Source, 50Ω Load): <0.5dB below 100kHz, <3dB below



2MHz.



TEMPERATURE ACCURACY USING INTERNAL CJC: 1°C (Type K) (see mainframe



specifications for details).







* SCANNING SPEEDS (see mainframe specifications for details)



Multiple Channels, Into Memory Channels/s



2700 2701 2750



7710 Scanning DCV 180/s 500/s 230/s



7710 Scanning DCV with Limits or Time Stamp On 170/s 500/s 230/s



7710 Scanning DCV alternating 2WΩ 45/s 130/s 60/s







* Multiple Channels, Into and Out of Memory to GPIB



or Ethernet Channels/s



2700 2701 2750



7710 Scanning DCV 145/s 440/s 210/s



7710 Scanning DCV with Limits or Time Stamp On 145/s 440/s 210/s



7710 Scanning DCV alternating 2WΩ 40/s 130/s 55/s







* ENVIRONMENTAL



OPERATING ENVIRONMENT: Specified for 0°C to 50°C. Specified for 80% R.H.



at 35°C.



STORAGE ENVIRONMENT: –25° to 65°C.



WEIGHT: 0.45kg (1 lb).



ACCESSORIES AVAILABLE: Model 7401 Type K Thermocouple Wire, 30.5m (100 ft).
